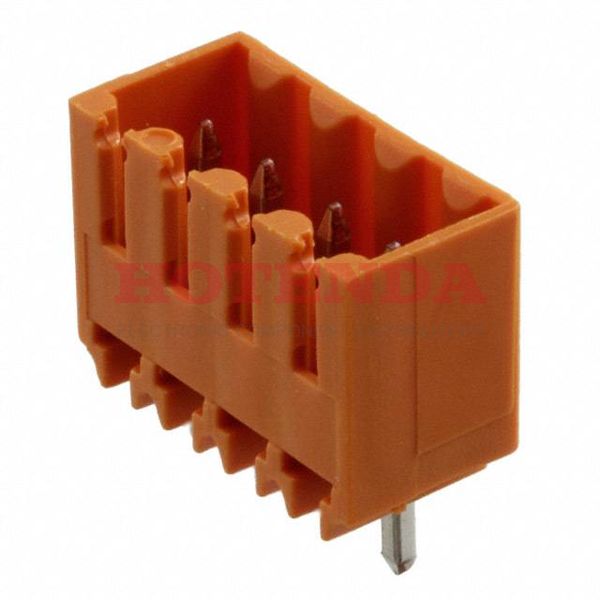

Name: 1604490000
Brand: Weidmüller
SKU: 1604490000
Price: 2.00000 USD
Availability: InStock

new-10%

1604490000

Manufacturer part number:1604490000

Manufacturer:Weidmüller

Description:1604490000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1604490000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate SL
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (4 Side)
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	HIGH DENSITY
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	4
Ingress Protection	IP10
Depth	7.5mm
Insulation Height	0.437 11.10mm
Current Rating	14.5A
Number of Conductors	ONE
Reference Standard	UL, CSA
Termination Style	Solder
Reliability	COMMERCIAL
Approval Agency	CSA, UR
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.295 inch
Contact Style	RND PIN-SKT
Insulation Resistance	1MOhm
Body/Shell Style	RECEPTACLE
Voltage	300V
Contact Tail Length	0.126 3.20mm
Max Current Rating	10A
Number of Levels	1
Current	10A
Number of Poles	4
Contact Pattern	RECTANGULAR
Contact Mating Finish	Tin
Voltage - IEC	320V
Header Orientation	Vertical
Current - IEC	17A
Hole Diameter	1.3 mm
Length	15.4mm
Width	7.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1604490000 Product Details

1604490000 Overview

Its mounting type is Through Hole.Packaging the product involves using a Bulk case.There is a product in the Omnimate SL Series.In addition, there are other features, such as HIGH DENSITY, to mention just a few.Through Hole is mounting the part.Device runs in -50°C~100°C operating temperature.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
