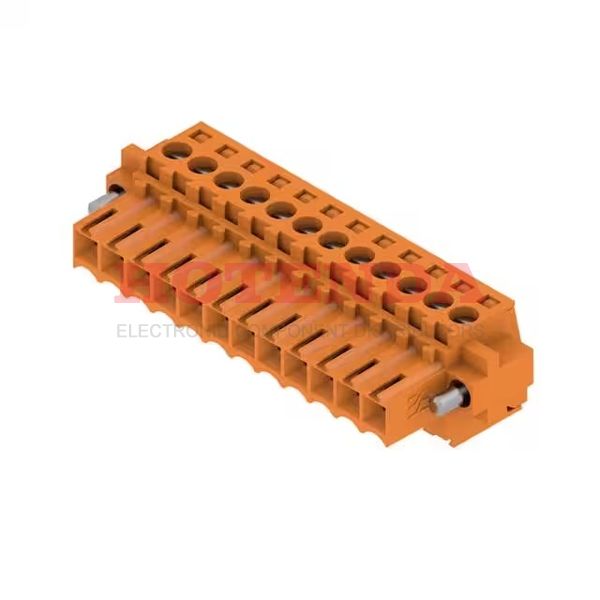

Name: 1606740000
Brand: Weidmüller
SKU: 1606740000
Price: 10.99000 USD
Availability: InStock

new

1606740000

Manufacturer part number:1606740000

Manufacturer:Weidmüller

Description:1606740000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1606740000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	PBT
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Termination	Screw
Connector Type	Terminal Block
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	HIGH DENSITY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	12
Orientation	Right Angle
Ingress Protection	IP20
Depth	18.5mm
Insulation Height	0.512 13.00mm
Current Rating	17A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	14 AWG
Wire/Cable Gauge	14 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Current - IEC	17A
Number of Positions Per Level	12
Screw Size	M2
Stripping Length	6mm
Length	49mm
Width	18.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1606740000 Product Details

1606740000 Overview

This product is packaged in a Terminal Block carton.This device is mounted in the Free Hanging (In-Line) position.The product is packaged in a Bulk case.This product is from the Omnimate BL Series.Among other features are HIGH DENSITY, to name only a few.Several benefits come from the Mating Flange feature.Cable, Free Hanging is mounting the part.Devices operate at -50°C~100°C operating temperatures.In order for this chip to function properly, the supply voltage should not exceed 300V.It shares many benefts with other Plug, Female Sockets products.
