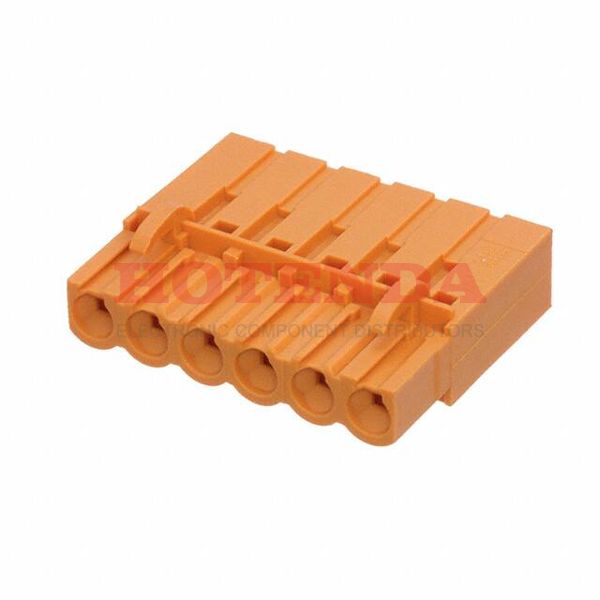

Name: 1610530000
Brand: Weidmüller
SKU: 1610530000
Price: 2.86000 USD
Availability: InStock

new-10%

1610530000

Manufacturer part number:1610530000

Manufacturer:Weidmüller

Description:1610530000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1610530000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	COPPER ALLOY
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT), Glass Filled
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Type	Plug Housing for Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Contact Finish - Mating	TIN
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	6
Orientation	Straight
Depth	24.5mm
Insulation Height	0.397 10.08mm
Current Rating	10A
Termination Style	Crimp
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Wire Gauge or Range - AWG	14-26 AWG
Voltage - IEC	400V
Plug Wire Entry	180°
Current - IEC	21A
Number of Positions Per Level	6
Stripping Length	5mm
Length	30.48mm
Width	24.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1610530000 Product Details

1610530000 Overview

There is a mounting type of Free Hanging (In-Line) for this device.Packaging the product involves using a Bulk case.It belongs to the Omnimate BL Series of products.As a result of its Retention Latches (Non-Wire Side) feature, it possesses a great deal of power.Part Cable, Free Hanging is mounted to the part.-50°C~100°C Operating Temperature is the default.There should be no voltage above 0 on the supply line for this chip.There are a lot of similarities between this part and other Plug Housing for Female Sockets products.
