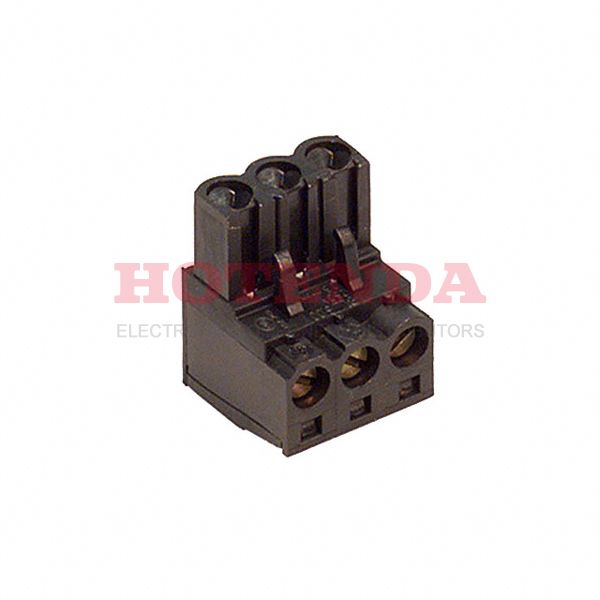

Name: 1625620000
Brand: Weidmüller
SKU: 1625620000
Availability: InStock

new-10%

1625620000

Manufacturer part number:1625620000

Manufacturer:Weidmüller

Description:1625620000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1625620000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2008
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Female Sockets
Number of Positions	3
Color	Black
Number of Rows	1
Voltage - Rated	400V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.197 5.00mm
Orientation	Right Angle
Ingress Protection	IP20
Depth	20mm
Insulation Height	0.598 15.19mm
Current Rating	19A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	3
UL Flammability Code	94V-0
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	15A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	26 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	15A
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.5-2.5mm2
Wire Strip Length	7mm
Screw Size	M2.5
Length	15mm
Width	20mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1625620000 Product Details

1625620000 Overview

This device is mounted in the Free Hanging (In-Line) position.Packaged in a Bulk case.As a product of the Omnimate BL Series, it can be found in this category.In many ways, Retention Latches (Non-Wire Side) makes it more powerful.It is mounted by Cable, Free Hanging.In this case, the device operates at -50°C~100°C Operating Temperature.There should be no more than 300V voltage supplied to this chip.Many Plug, Female Sockets products share the same benefits as this part.
