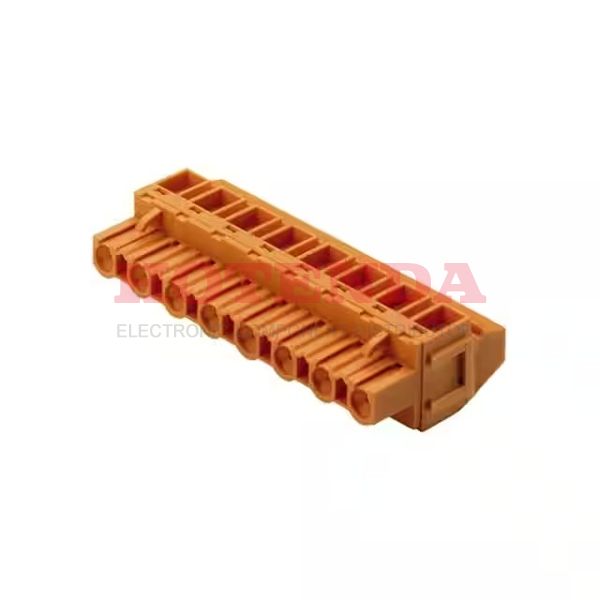

Name: 1702030000
Brand: Weidmüller
SKU: 1702030000
Price: 4.52000 USD
Availability: InStock

new-10%

1702030000

Manufacturer part number:1702030000

Manufacturer:Weidmüller

Description:1702030000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1702030000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Wire Side)
Pbfree Code	yes
Part Status	Active
Termination	Screw
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.295 7.50mm
Orientation	Straight
Insulation Height	0.563 14.30mm
Current Rating	15A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
Number of Contacts	4
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	800V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Current - IEC	15A
Screw Size	M2.5
Stripping Length	7mm
Height	26.8mm
Length	31mm
Width	14.3mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1702030000 Product Details

1702030000 Overview

Mounting type Free Hanging (In-Line) is selected for the device.Packaging the product involves using a Bulk case.The product is a part of the Omnimate BL Series.A number of features make the Retention Latches (Wire Side) feature more powerful.Cable, Free Hanging is mounting the part.There is no operating temperature for the device.There are many benefits that this part shares with other Plug, Female Sockets products as well.
