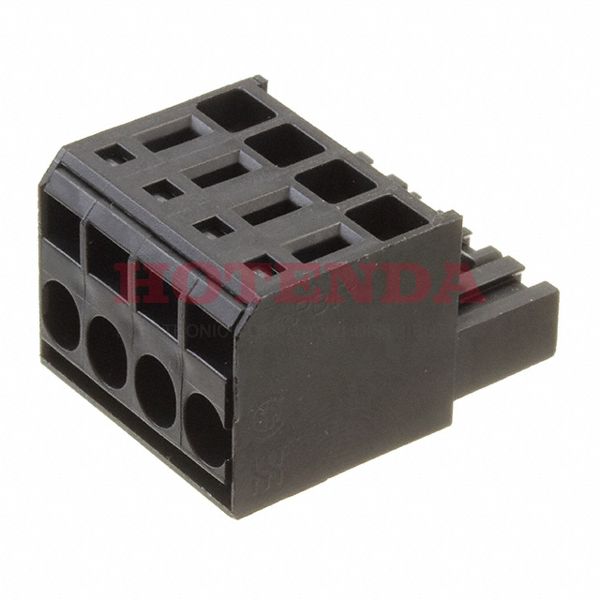

Name: 1707710000
Brand: Weidmüller
SKU: 1707710000
Availability: InStock

new-10%

1707710000

Manufacturer part number:1707710000

Manufacturer:Weidmüller

Description:1707710000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1707710000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Crimp
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Straight
Depth	25.1mm
Insulation Height	0.598 15.19mm
Current Rating	10A
Termination Style	Screwless - Spring Cage, Tension Clamp
Number of Contacts	4
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	15A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	26 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	400V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Current - IEC	17A
Length	20.32mm
Width	25.1mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1707710000 Product Details

1707710000 Overview

Free Hanging (In-Line) indicates that the device is mounted.Packaging the product involves using a Bulk case.Among the products in the Omnimate BL Series, it is one of the most popular.There are a number of advantages to its Retention Latches (Non-Wire Side) feature.Cable, Free Hanging is mounting the part.In this case, the device runs at -50°C~100°C Operating Temperature.This chip should not be supplied with a voltage greater than 300V.There are a lot of similarities between this part and other Plug, Female Sockets products.
