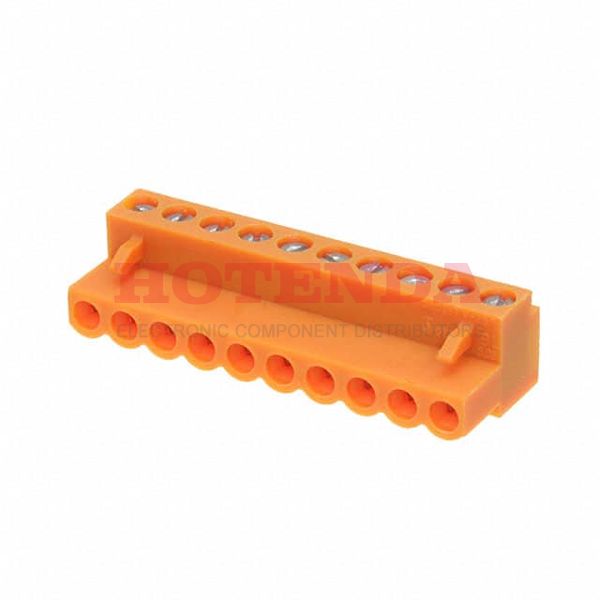

Name: 1716400000
Brand: Weidmüller
SKU: 1716400000
Availability: InStock

new-10%

1716400000

Manufacturer part number:1716400000

Manufacturer:Weidmüller

Description:1716400000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1716400000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2004
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Female Sockets
Number of Positions	10
Color	Orange
Number of Rows	1
Gender	Female
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	17.4mm
Insulation Height	0.492 12.50mm
Current Rating	15A
Termination Style	Screw - Leaf Spring, Wire Guard
Number of Contacts	10
UL Flammability Code	94V-2
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	15A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-26 AWG
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	6mm
Current - IEC	14A
Screw Size	M2.5
Length	50.8mm
Width	12.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1716400000 Product Details

1716400000 Overview

A Free Hanging (In-Line) mounting type is specified for the device.An orange Bulk case is used to package the product.The product is a member of the Omnimate BL Series.Its Retention Latches (Non-Wire Side) feature renders it more powerful in many ways.This part is mounted by Cable, Free Hanging. -50°C~100°C Operating Temperature is what the device runs at.A voltage greater than 300V should not be applied to this chip.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
