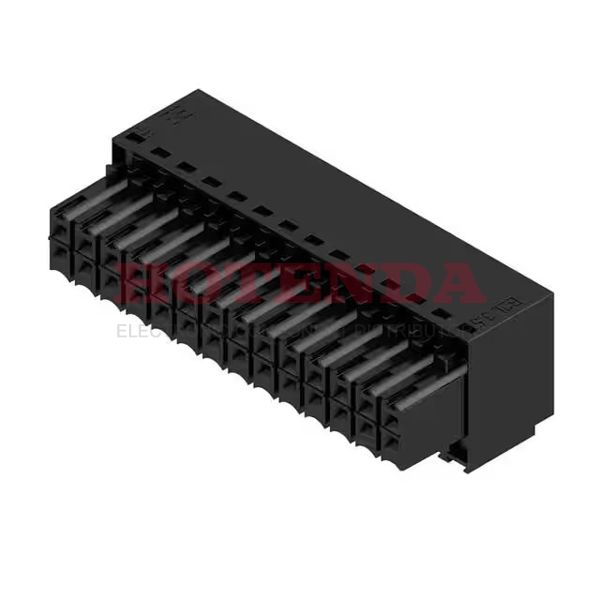

Name: 1747960000
Brand: Weidmüller
SKU: 1747960000
Price: 11.53000 USD
Availability: InStock

new

1747960000

Manufacturer part number:1747960000

Manufacturer:Weidmüller

Description:1747960000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1747960000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate B2L
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Type	Plug, Female Sockets
Number of Positions	28
Color	Black
Number of Rows	2
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	28
Ingress Protection	IP20
Insulation Height	0.618 15.70mm
Termination Style	Screwless - Spring Cage, Tension Clamp
UL Flammability Code	94V-0
Number of Levels	2
Contact Mating Finish	Tin
Voltage - UL	300V
Wire Gauge or Range - AWG	16-28 AWG
Current - UL	10A
Voltage - IEC	200V
Positions Per Level	14
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1mm2
Wire Strip Length	7mm
Current - IEC	10.3A
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1747960000 Product Details

1747960000 Overview

It's mounted Free Hanging (In-Line).A Bulk case is used for packaging.This is from the Omnimate B2L Series.The device runs in -50°C~100°C Operating Temperature.There are many benefits that this part shares with other Plug, Female Sockets products as well.
