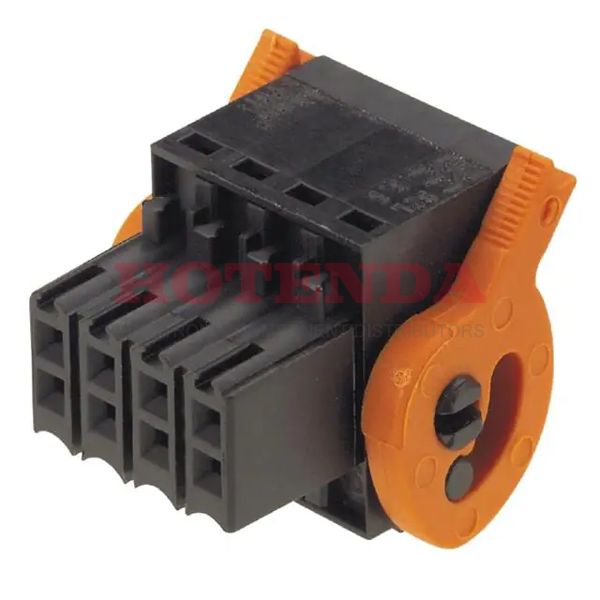

Name: 1748640000
Brand: Weidmüller
SKU: 1748640000
Price: 23.03000 USD
Availability: InStock

new

1748640000

Manufacturer part number:1748640000

Manufacturer:Weidmüller

Description:1748640000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1748640000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate B2L
Feature	Ejector Latches
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Crimp
Type	Plug, Female Sockets
Number of Positions	36
Color	Black
Number of Rows	2
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.138 3.50mm
Total Number of Contacts	36
Orientation	Straight
Ingress Protection	IP20
Depth	21.6mm
Insulation Height	0.618 15.70mm
Termination Style	Screwless - Spring Cage, Tension Clamp
UL Flammability Code	94V-0
Insulation Resistance	1MOhm
Voltage	150V
Max Supply Voltage	150V
Max Current Rating	10A
Number of Levels	2
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	18 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	250V
Positions Per Level	18
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1mm2
Wire Strip Length	7mm
Current - IEC	10.3A
Number of Positions Per Level	18
Length	70mm
Width	15.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1748640000 Product Details

1748640000 Overview

Free Hanging (In-Line) is the type of mounting for the device.Packaged in a Bulk case.As a product of the Omnimate B2L Series, it can be found in this category.Its Ejector Latches feature renders it more powerful in many ways.It's mounted by Cable, Free Hanging.-50°C~100°C Operating Temperature is the default operating temperature for the device.You should not supply this chip with more voltage than 150V.
