Name: 1755230000
Brand: Weidmüller
SKU: 1755230000
Price: 5.32000 USD
Availability: InStock

new-10%

1755230000

Manufacturer part number:1755230000

Manufacturer:Weidmüller

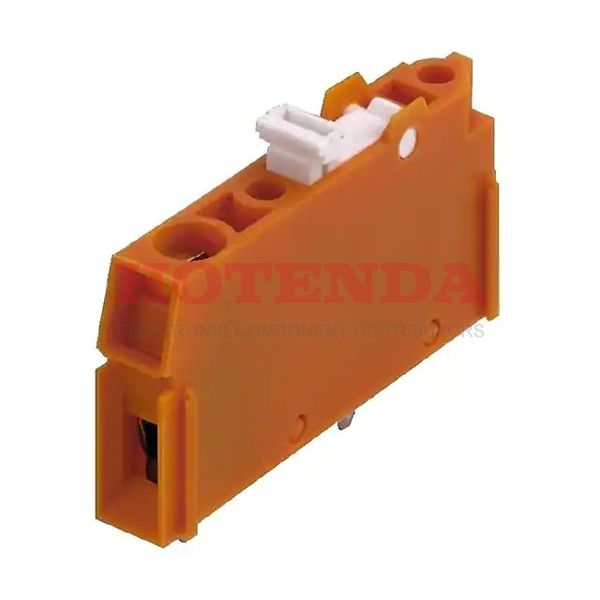

Description:508mm Orange Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 12-26 AWG Omnimate LP

Case Package:SOT-23

Datasheet:1755230000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~100°C
Packaging	Bulk
Series	Omnimate LP
Published	2008
Feature	Knife Disconnect
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
ECCN Code	EAR99
Color	Orange
Number of Rows	1
Voltage - Rated	300V
HTS Code	8536.69.40.40
Pitch	508mm
Orientation	Straight
Current Rating	10A
Approval Agency	CSA, UR
Number of Contacts	1
Wire Gauge	12-26 AWG
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	1
Safety Approval	UL; VDE; CSA
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Clamping Yoke, Tension Sleeve
Screw Thread	M3
Hole Diameter	1.3 mm
Stripping Length	6mm
Height	24.8mm
Length	5.08mm
Width	32.6mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2
Lead Free	Lead Free

1755230000 Product Details

1755230000 Overview

This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Omnimate LP Series.There are a number of advantages to its Knife Disconnect feature.Part Through Hole is mounted to the part.As a result, the device runs at -50°C~100°C Operating Temperature.
