Name: 1776374001
Brand: Weidmüller
SKU: 1776374001
Price: 1.65000 USD
Availability: InStock

new-10%

1776374001

Manufacturer part number:1776374001

Manufacturer:Weidmüller

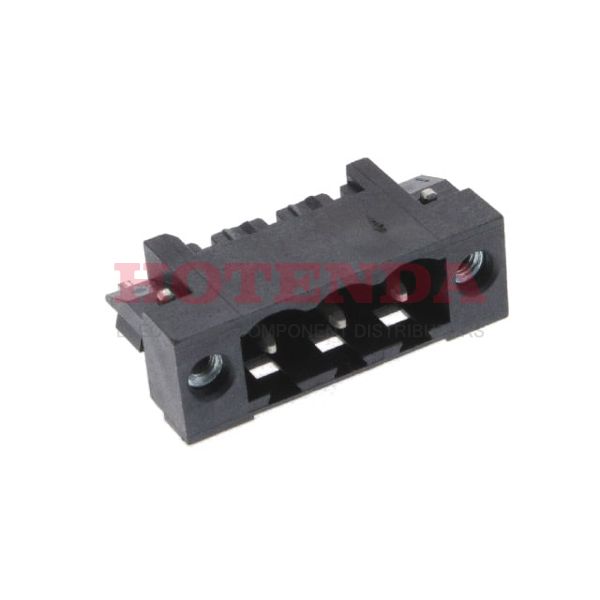

Description:Tape & Reel (TR) 0.200 5.08mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SL Liquid Crystal Polymer (LCP), Halogen Free Tin Copper Alloy

Case Package:SOT-23

Datasheet:1776374001 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Operating Temperature	-20°C~100°C
Packaging	Tape & Reel (TR)
Series	Omnimate SL
Published	2009
JESD-609 Code	e3
Feature	Mating Flange, Solder Retention
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	3
Color	Black
Number of Rows	1
Voltage - Rated	300V
Additional Feature	PANEL MOUNTABLE
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.200 5.08mm
Total Number of Contacts	3
Insulation Height	0.472 12.00mm
Current Rating	15A
Termination Style	Solder
Approval Agency	CSA, UR
UL Flammability Code	94V-0
Voltage	300V
Contact Tail Length	0.059 1.50mm
Number of Levels	1
Current	10A
Number of Poles	3
Contact Mating Finish	Tin
Voltage - IEC	250V
Header Orientation	Vertical
Current - IEC	13A
Hole Diameter	1.5 mm
Height	12mm
Length	25.4mm
Width	8.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1776374001 Product Details

1776374001 Overview

Mounting type Through Hole is assigned to the device.Packaging the product involves using a Tape & Reel (TR) case.Among the products in the Omnimate SL Series, it is one of the most popular.There are also other features, like PANEL MOUNTABLE, to name a few.A number of benefits can be derived from the Mating Flange, Solder Retention feature of this application.Through Hole is the mounting point for the part.-20°C~100°C Operating Temperature is used by the device.There are a lot of advantages this part has in common with other Header, Male Pins, Shrouded (4 Side) parts.
