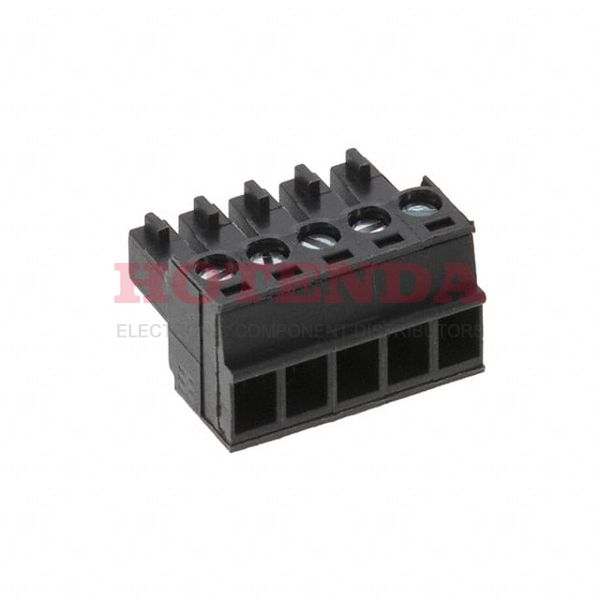

Name: 1792800000
Brand: Weidmüller
SKU: 1792800000
Price: 6.08000 USD
Availability: InStock

new-10%

1792800000

Manufacturer part number:1792800000

Manufacturer:Weidmüller

Description:1792800000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1792800000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2007
Series	Omnimate BC
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Termination	Screw
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.150 3.81mm
Total Number of Contacts	5
Orientation	Right Angle
Ingress Protection	IP20
Depth	15.5mm
Insulation Height	0.437 11.10mm
Current Rating	17.5A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, cURus
UL Flammability Code	94V-0
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	8A
Number of Levels	1
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Wire/Cable Gauge	28 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Current - IEC	17.5A
Number of Positions Per Level	5
Screw Size	M2
Stripping Length	7mm
Length	19.84mm
Width	15.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1792800000 Product Details

1792800000 Overview

Free Hanging (In-Line) is the mounting type.Bulk cases are used to package the product.There is a product in the Omnimate BC Series.By Cable, Free Hanging it's mounted.Devices operate at -50°C~120°C operating temperatures.This chip should not be operated above 300V volts.There are a lot of similarities between this part and other Plug, Female Sockets products.
