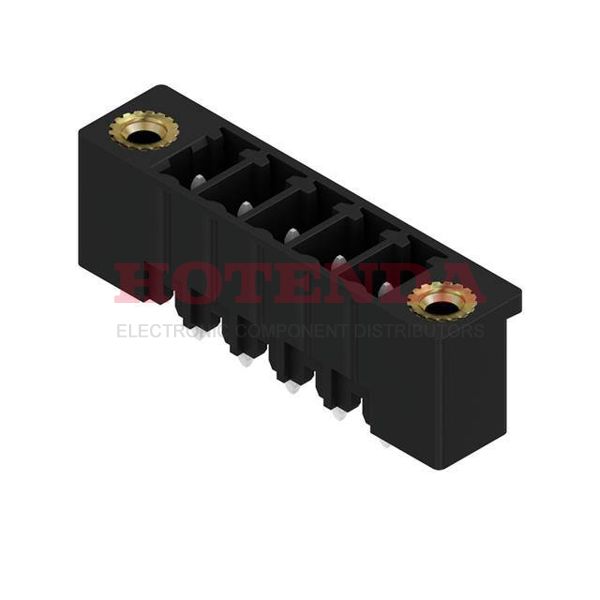

Name: 1793730000
Brand: Weidmüller
SKU: 1793730000
Price: 1.99000 USD
Availability: InStock

new-10%

1793730000

Manufacturer part number:1793730000

Manufacturer:Weidmüller

Description:1793730000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1793730000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2007
Series	Omnimate SC
JESD-609 Code	e3
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Gender	Male
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.150 3.81mm
Total Number of Contacts	5
Ingress Protection	IP20
Insulation Height	0.362 9.20mm
Current Rating	17.5A
Termination Style	Solder
Approval Agency	CSA, cURus
UL Flammability Code	94V-0
Voltage	300V
Contact Tail Length	0.126 3.20mm
Max Current Rating	10A
Number of Levels	1
Current	10A
Number of Poles	5
Contact Mating Finish	Tin
Voltage - IEC	320V
Header Orientation	Vertical
Current - IEC	17.5A
Hole Diameter	1.2 mm
Height	9.2mm
Length	29.4mm
Width	6.85mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1793730000 Product Details

1793730000 Overview

This device has a Through Hole mounting type.It's packaged in a Bulk case.The product belongs to the Omnimate SC Series.As a result of its Mating and Mounting Flange feature, it possesses a great deal of power.Through Hole is mounting the part.The device runs in -50°C~120°C Operating Temperature.As with other Header, Male Pins, Shrouded (4 Side) products, this part also offers a wide range of benefits.
