Name: 1793820000
Brand: Weidmüller
SKU: 1793820000
Price: 3.01000 USD
Availability: InStock

new-10%

1793820000

Manufacturer part number:1793820000

Manufacturer:Weidmüller

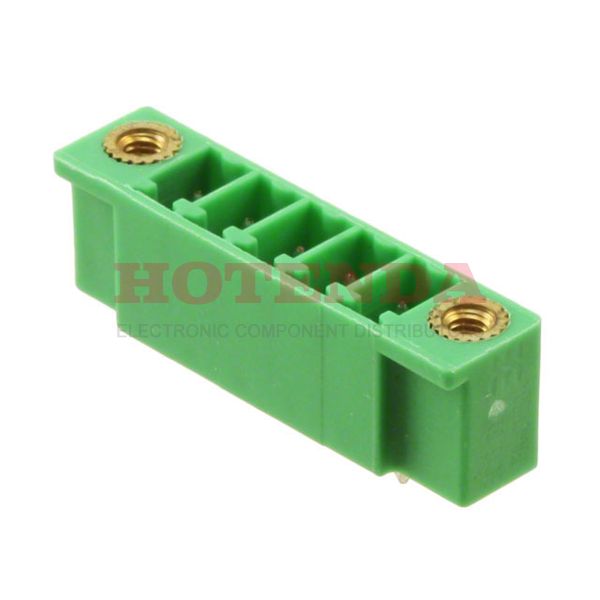

Description:Bulk 0.150 3.81mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) Omnimate SC Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy

Case Package:SOT-23

Datasheet:1793820000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate SC
Published	2008
JESD-609 Code	e3
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Connector Type	PCB, Terminal Block
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	300V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.150 3.81mm
Total Number of Contacts	5
Ingress Protection	IP20
Insulation Height	0.362 9.20mm
Current Rating	8A
Termination Style	Solder
UL Flammability Code	94V-0
Insulation Resistance	5MOhm
Voltage	300V
Contact Tail Length	0.126 3.20mm
Number of Levels	1
Current	10A
Contact Mating Finish	Tin
Voltage - IEC	320V
Header Orientation	Vertical
Current - IEC	17.5A
Number of Positions Per Level	5
Height	9.2mm
Width	7.15mm
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1793820000 Product Details

1793820000 Overview

Packaging for this item is PCB, Terminal Block.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Omnimate SC Series.In many ways, its Mating and Mounting Flange feature makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -50°C~120°C Operating Temperature.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
