Name: 1811910000
Brand: Weidmüller
SKU: 1811910000
Price: 2.01000 USD
Availability: InStock

new-10%

1811910000

Manufacturer part number:1811910000

Manufacturer:Weidmüller

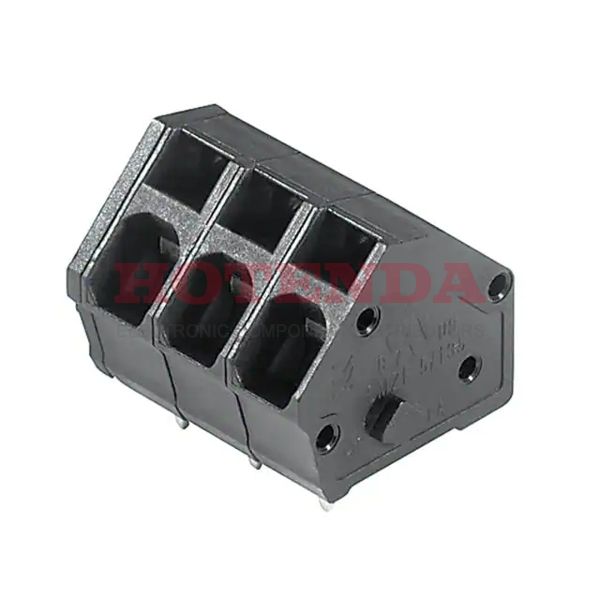

Description:0.197 5.00mm Black Bulk Thermoplastic, Wemid Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 14-26 AWG Omnimate LMZF

Case Package:SOT-23

Datasheet:1811910000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Copper
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic, Wemid
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate LMZF
Published	2013
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Color	Black
Number of Rows	1
Voltage - Rated	300V
Pitch	0.197 5.00mm
Current Rating	10A
Approval Agency	cURus
Number of Contacts	9
Wire Gauge	14-26 AWG
Number of Levels	1
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Terminal and Terminal Block Type	STRIP TERMINAL BLOCK
Number of Ways	9
Safety Approval	UL; CSA
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screwless - Spring Cage, Tension Clamp
Hole Diameter	1.3 mm
Stripping Length	6mm
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1811910000 Product Details

1811910000 Overview

The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Omnimate LMZF Series of products.Its Interlocking (Side) feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -50°C~120°C Operating Temperature.
