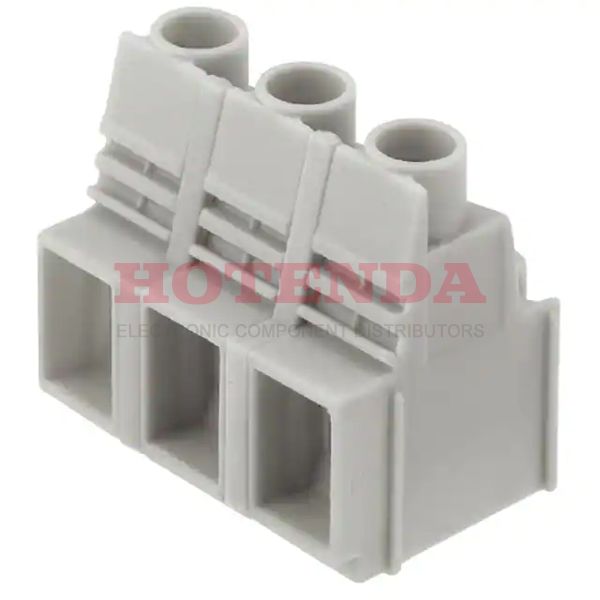

Name: 1839200000
Brand: Weidmüller
SKU: 1839200000
Price: 13.38000 USD
Availability: InStock

new

1839200000

Manufacturer part number:1839200000

Manufacturer:Weidmüller

Description:0.500 12.70mm Gray Bulk Thermoplastic, Wemid Through Hole Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 6-26 AWG Omnimate LUP

Case Package:SOT-23

Datasheet:1839200000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper
Contact Plating	Copper, Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic, Wemid
Contact Material - Plating	Electrolytic Copper - Tin Plated
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate LUP
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Color	Gray
Number of Rows	1
Voltage - Rated	600V
Pitch	0.500 12.70mm
Orientation	Straight
Current Rating	5A
Approval Agency	CSA, cURus
Number of Contacts	4
Housing Color	Grey
Wire Gauge	6-26 AWG
Number of Levels	1
Current	58A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	6 AWG
Number of Decks	1
Terminal and Terminal Block Type	STRIP TERMINAL BLOCK
Torque - Screw	1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways	4
Safety Approval	UL; VDE; CSA
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Clamping Yoke, Tension Sleeve
Screw Thread	M4
Hole Diameter	1.6 mm
Stripping Length	12mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1839200000 Product Details

1839200000 Overview

Through Hole is the mounting type for the device.The product is packaged in a Bulk case.It's part of the Omnimate LUP Series.Many aspects of its Interlocking (Side) feature increase its effectiveness.Mounting of the part is based on Through Hole.It runs at -50°C~120°C Operating Temperature.
