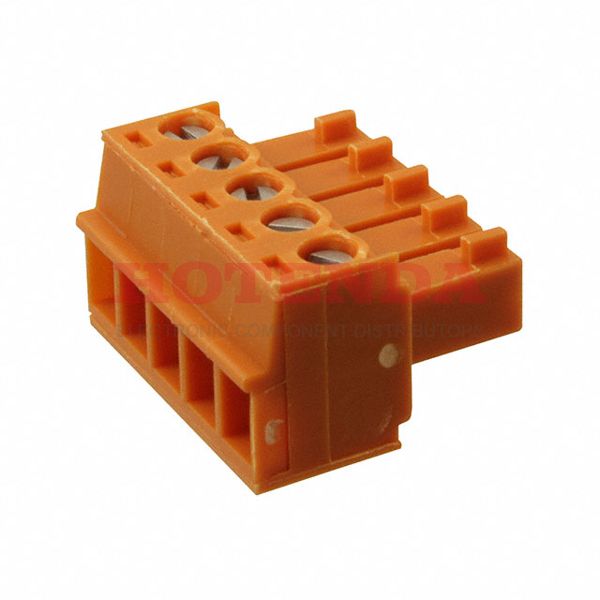

Name: 1940760000
Brand: Weidmüller
SKU: 1940760000
Price: 6.08000 USD
Availability: InStock

new-10%

1940760000

Manufacturer part number:1940760000

Manufacturer:Weidmüller

Description:1940760000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1940760000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Published	2013
Series	Omnimate BC
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	STANDARD: UL 94V-0
Pitch	0.150 3.81mm
Ingress Protection	IP20
Insulation Height	0.437 11.10mm
Current Rating	17.5A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, cURus
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Number of Ways	5
Safety Approval	UL; CSA
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Current - IEC	17.5A
Number of Positions Per Level	5
Screw Size	M2
Stripping Length	7mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1940760000 Product Details

1940760000 Overview

Free Hanging (In-Line) is the mounting type.Packaging is performed using a Bulk case.This product is part of the Omnimate BC Series.There are also other features like STANDARD: UL 94V-0, to name a few.It's mounted by Free Hanging.Device runs at -50°C~120°C Operating Temperature.Other Plug, Female Sockets products benefit from this part as well.
