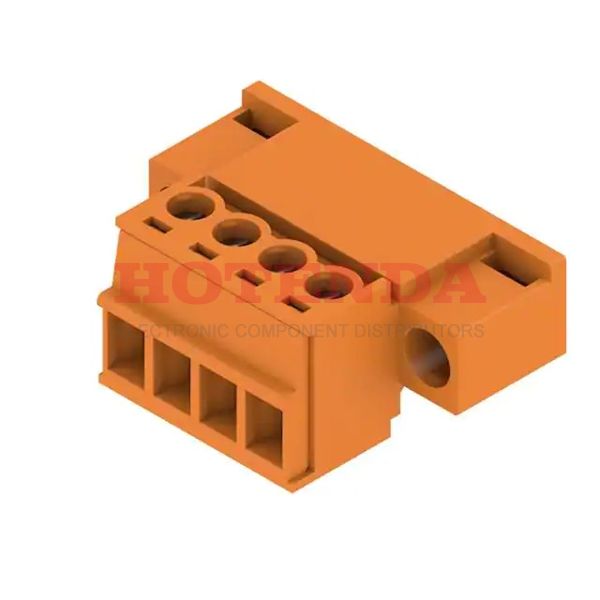

Name: 1970930000
Brand: Weidmüller
SKU: 1970930000
Price: 6.62000 USD
Availability: InStock

new-10%

1970930000

Manufacturer part number:1970930000

Manufacturer:Weidmüller

Description:1970930000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1970930000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate SC
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Plug, Male Pins
Number of Positions	4
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Pitch	0.150 3.81mm
Ingress Protection	IP20
Insulation Height	0.437 11.10mm
Current Rating	17.1A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, cURus
Number of Levels	1
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-28 AWG
Current - UL	10A
Voltage - IEC	320V
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Number of Ways	4
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	7mm
Current - IEC	17.5A
Screw Size	M2
Stripping Length	7mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1970930000 Product Details

1970930000 Overview

Free Hanging (In-Line) is the mounting type for the device.It's packaged in a Bulk case.This is from the Omnimate SC Series.In many ways, its Mating Flange feature makes it more powerful.Running in -50°C~120°C Operating Temperature.
