2418580000

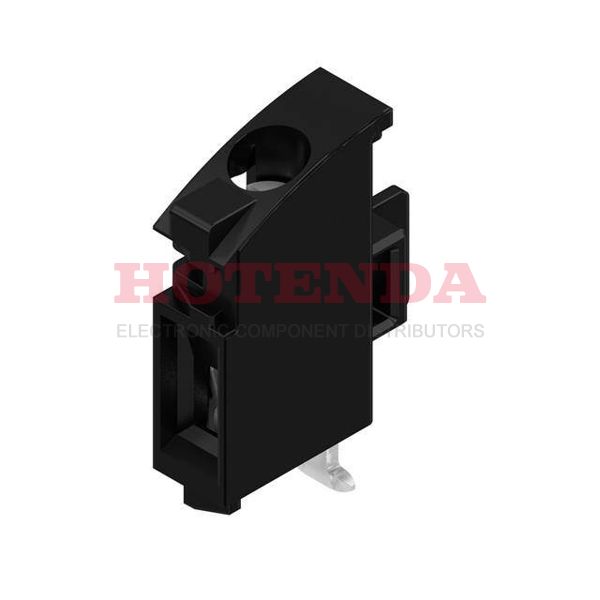

  • 2418580000 - Black Tape & Reel (TR) Liquid Crystal Polymer (LCP) Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 14-26 AWG CH20M
  • 2418580000 - Black Tape & Reel (TR) Liquid Crystal Polymer (LCP) Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 14-26 AWG CH20M

2418580000

2418580000

Weidmüller

Black Tape & Reel (TR) Liquid Crystal Polymer (LCP) Horizontal with Board Screw - Clamping Yoke, Tension Sleeve 1 Levels 14-26 AWG CH20M

SOT-23

2418580000 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Package / Case SMD/SMT
Housing Material Liquid Crystal Polymer (LCP)
Contact Material - Plating Tin Plated
Operating Temperature-50°C~120°C
PackagingTape & Reel (TR)
Series CH20M
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Color Black
Wire Gauge14-26 AWG
Voltage 500V
Number of Levels 1
Current 13A
Mating Orientation Horizontal with Board
Wire TerminationScrew - Clamping Yoke, Tension Sleeve
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:3686 items

Pricing & Ordering

QuantityUnit PriceExt. Price
432$2.78713$1204.04016

2418580000 Product Details

2418580000 Overview


An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the CH20M Series.SMD/SMT refers to a package enclosing a device.Operating temperature is set to -50°C~120°C.

2418580000 Features


CH20M series


2418580000 Applications


There are a lot of Weidmüller
2418580000 Terminal Blocks applications.


  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
