Name: 9500580000
Brand: Weidmüller
SKU: 9500580000
Price: 7.59000 USD
Availability: InStock

new-10%

9500580000

Manufacturer part number:9500580000

Manufacturer:Weidmüller

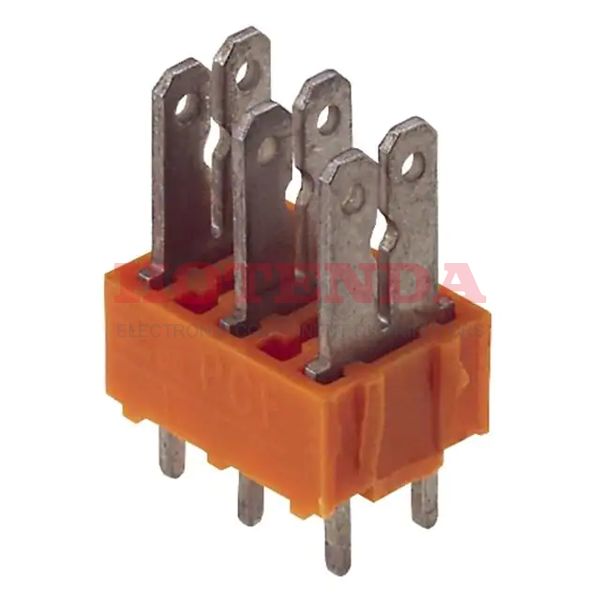

Description:0.197 5.00mm Orange Bulk Polyamide (PA), Nylon Through Hole Vertical with Board Quick Connect, Disconnect 1 Levels Omnimate PCF

Case Package:SOT-23

Datasheet:9500580000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	CuSn
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~100°C
Packaging	Bulk
Series	Omnimate PCF
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Color	Orange
Number of Rows	1
Voltage - Rated	150V
Additional Feature	STANDARD: UL 94V-2
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Orientation	Straight
Depth	9.8mm
Current Rating	24A
Approval Agency	CSA, UR
Voltage	300V
Max Current Rating	15A
Number of Levels	1
Number of Poles	18
Number of Decks	1
Terminal and Terminal Block Type	STRIP TERMINAL BLOCK
Positions Per Level	18
Number of Ways	18
Safety Approval	UL; CSA
Mating Orientation	Vertical with Board
Wire Termination	Quick Connect, Disconnect
Hole Diameter	1.3 mm
Length	89.8mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-2

9500580000 Product Details

9500580000 Overview

There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the Omnimate PCF Series.Moreover, there are a number of other features, including STANDARD: UL 94V-2, to name just a few.Through Hole is used to mount the part.In this case, the device operates at -50°C~100°C Operating Temperature.
