XC2V1500-4FF896I

XC2V1500-4FF896I

XC2V1500-4FF896I

Xilinx Inc.

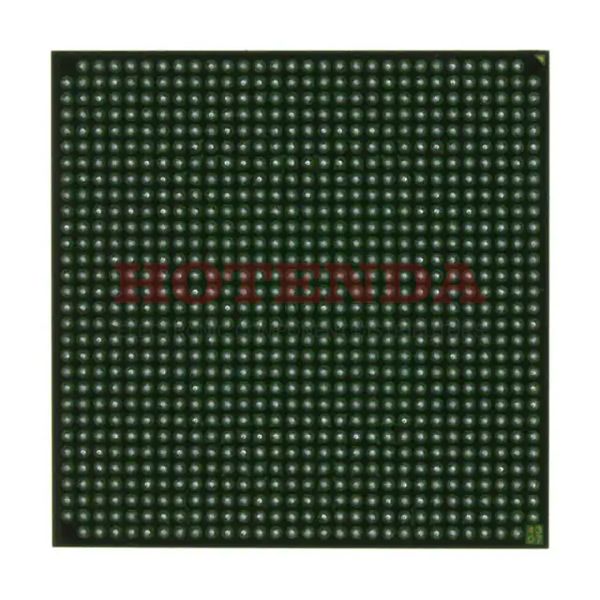

1.5V V FPGAs Virtex?-II Series 896-BBGA, FCBGA 1mm mm 896

SOT-23

XC2V1500-4FF896I Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 896-BBGA, FCBGA
Number of Pins 896
Operating Temperature-40°C~100°C TJ
PackagingTray
Published 2007
Series Virtex®-II
JESD-609 Code e0
Pbfree Code no
Part StatusObsolete
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 896
ECCN Code 3A991.D
Terminal Finish Tin/Lead (Sn63Pb37)
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 1.425V~1.575V
Terminal Position BOTTOM
Terminal FormBALL
Peak Reflow Temperature (Cel) 225
Supply Voltage 1.5V
Terminal Pitch1mm
[email protected] Reflow Temperature-Max (s) 30
Base Part Number XC2V1500
Pin Count896
Number of Outputs 528
Operating Supply Voltage1.5V
Power Supplies1.51.5/3.33.3V
Number of I/O 528
RAM Size 108kB
Clock Frequency 650MHz
Programmable Logic TypeFIELD PROGRAMMABLE GATE ARRAY
Total RAM Bits 884736
Number of Gates1500000
Number of LABs/CLBs 1920
Speed Grade 4
Number of Registers 15360
Number of Logic Cells17280
Length 31mm
Width 31mm
Radiation HardeningNo
RoHS StatusNon-RoHS Compliant
In-Stock:4435 items

XC2V1500-4FF896I Product Details

XC2V1500-4FF896I Overview


A 896-BBGA, FCBGA package is provided with this component. FIELD PROGRAMMABLE GATE ARRAY is the component of this type of FPGA. The device has 528 I/O ports for more coherent data transfer. Fpga chips is powered from a supply voltage of 1.5V. Part of the Field Programmable Gate Arrays family, this FPGA part is a programmable gate array. This FPGA module can be attached to the development board with a Surface Mount. This device is powered by a 1.425V~1.575V battery. The FPGA belongs to the Virtex?-II series of FPGAs, and it is one type of FPGA. During the operation of the system, the operating temperature should remain within the range of -40°C~100°C TJ. With this device, you will be able to make use of 528 outputs. Using the Tray layout, this FPGA model can be contained in a very small amount of space. In total, there are a total of 896 terminations on fpga chips. There are 884736 RAM bits that are available with this device. Parts related to this part can be found using its base part number XC2V1500. The RAM si108kBe of this FPGA module reaches 108kB so as to guarantee the normal operation of the program during operation. In this case, there are 896 pins on the board. The FPGA consists of 1920 LABs/CLBs. Providing the FPGA is mounted in Surface Mount as per the specifications of the IC, then it should work perfectly according to its specifications. Its flexibility is fully utilized when operated with a supply voltage of 1.5V. It is powered by a 1.51.5/3.33.3V battery, which can be purchased separately. There are 1500000 gates in its basic building block. With a total of 896 pins, it is equipped with a high level of security. Typically, it uses a crystal oscillating at 650MHz in order to operate. The structure of the registers used to store and transfer data consists of 15360 registers. During the construction of the building block, there are 17280 logic cells used.

XC2V1500-4FF896I Features


528 I/Os
Up to 884736 RAM bits
896 LABs/CLBs
15360 registers

XC2V1500-4FF896I Applications


There are a lot of Xilinx Inc. XC2V1500-4FF896I FPGAs applications.

  • Embedded Vision
  • DO-254
  • Distributed Monetary Systems
  • Secure Communication
  • Device controllers
  • Consumer Electronics
  • Industrial,Medical and Scientific Instruments
  • Solar Energy
  • Data center search engines
  • Military Temperature
