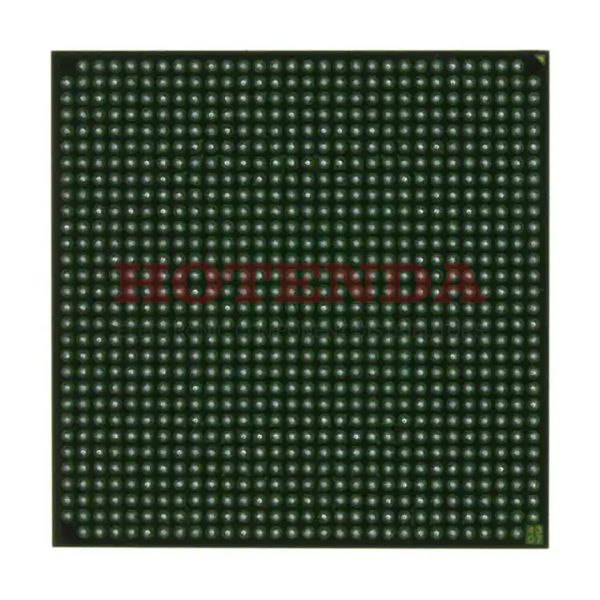

XC2V1500-5FFG896I

XC2V1500-5FFG896I

XC2V1500-5FFG896I

Xilinx Inc.

1.5V V 3.4mm mm FPGAs Virtex?-II Series 896-BBGA, FCBGA 1mm mm 896

SOT-23

XC2V1500-5FFG896I Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 896-BBGA, FCBGA
Number of Pins 896
Operating Temperature-40°C~100°C TJ
PackagingTray
Published 2007
Series Virtex®-II
JESD-609 Code e1
Pbfree Code yes
Part StatusObsolete
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 896
ECCN Code EAR99
Technology CMOS
Voltage - Supply 1.425V~1.575V
Terminal Position BOTTOM
Terminal FormBALL
Peak Reflow Temperature (Cel) 245
Supply Voltage 1.5V
Terminal Pitch1mm
[email protected] Reflow Temperature-Max (s) 30
Base Part Number XC2V1500
Pin Count896
Operating Supply Voltage1.5V
Number of I/O 528
RAM Size 108kB
Programmable Logic TypeFIELD PROGRAMMABLE GATE ARRAY
Total RAM Bits 884736
Number of Gates1500000
Number of LABs/CLBs 1920
Speed Grade 5
Number of Registers 15360
Combinatorial Delay of a CLB-Max 0.39 ns
Height Seated (Max) 3.4mm
Length 31mm
Width 31mm
Radiation HardeningNo
RoHS StatusRoHS Compliant
In-Stock:4177 items

XC2V1500-5FFG896I Product Details

XC2V1500-5FFG896I Overview


There is a 896-BBGA, FCBGA package that includes this component. There are FIELD PROGRAMMABLE GATE ARRAY transistors in this type of FPGA. A total of 528 I/Os allow data to be transferred in a more coherent manner. Supply voltage is 1.5V volts. This FPGA module can be attached to the development board with a Surface Mount. This device is powered by a 1.425V~1.575V battery. The Virtex?-II Series is one of the types of FPGAs that belong to this type. As far as the operating temperature is concerned, it should be kept within -40°C~100°C TJ when operating. As a result of space limitations, this FPGA model has been included in Tray. 896 terminations are present in total. A device like this one offers 884736 RAM bits, which is a considerable amount of memory. Related parts can be found by using its base part number XC2V1500. The FPGA module's RAM si108kBe reaches 108kB in order to ensure that the program operates in a normal manner. It has a total of 896 pins that are designed for it. A total of 1920 LABs/CLBs make up this FPGA array. Providing that this FPGA is mounted in Surface Mount, it will be able to perform according to its specifications in a flawless manner. In the case of 1.5V supply voltage, designers can take full advantage of its flexibility. The building block that forms the basis of the system contains 1500000 gates. The device has a total of 896 pins on fpga semiconductor. A total of 15360 registers are used for storing and transferring data between them.

XC2V1500-5FFG896I Features


528 I/Os
Up to 884736 RAM bits
896 LABs/CLBs
15360 registers

XC2V1500-5FFG896I Applications


There are a lot of Xilinx Inc. XC2V1500-5FFG896I FPGAs applications.

  • Medical Applications
  • Secure Communication
  • Medical Electronics
  • Medical imaging
  • Automotive driver's assistance
  • Voice recognition
  • OpenCL
  • Automotive advanced driver assistance systems (ADAS)
  • Data Mining
  • Artificial intelligence (AI)
