XC2V6000-6FFG1152C

XC2V6000-6FFG1152C

XC2V6000-6FFG1152C

Xilinx Inc.

1.5V V 3.4mm mm FPGAs Virtex?-II Series 1152-BBGA, FCBGA 1mm mm

SOT-23

XC2V6000-6FFG1152C Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1152-BBGA, FCBGA
Number of Pins 1152
Operating Temperature0°C~85°C TJ
PackagingTray
Published 2007
Series Virtex®-II
JESD-609 Code e1
Pbfree Code yes
Part StatusObsolete
Moisture Sensitivity Level (MSL) 4 (72 Hours)
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)
HTS Code8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 1.425V~1.575V
Terminal Position BOTTOM
Terminal FormBALL
Peak Reflow Temperature (Cel) 245
Supply Voltage 1.5V
Terminal Pitch1mm
[email protected] Reflow Temperature-Max (s) 30
Base Part Number XC2V6000
Number of Outputs 824
Operating Supply Voltage1.5V
Power Supplies1.51.5/3.33.3V
Number of I/O 824
RAM Size 324kB
Clock Frequency 820MHz
Programmable Logic TypeFIELD PROGRAMMABLE GATE ARRAY
Total RAM Bits 2654208
Number of Gates6000000
Number of LABs/CLBs 8448
Speed Grade 6
Number of Registers 67584
Combinatorial Delay of a CLB-Max 0.35 ns
Height Seated (Max) 3.4mm
Length 35mm
Width 35mm
Radiation HardeningNo
RoHS StatusRoHS Compliant
In-Stock:1121 items

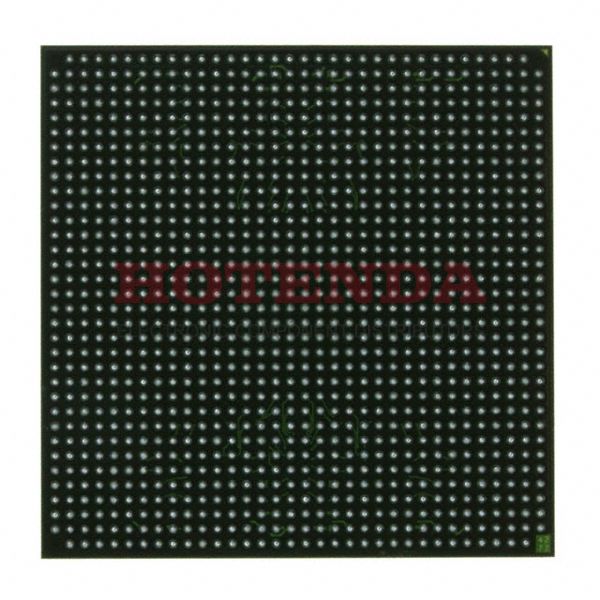

XC2V6000-6FFG1152C Product Details

XC2V6000-6FFG1152C Overview


In the package 1152-BBGA, FCBGA, this product is provided. The FIELD PROGRAMMABLE GATE ARRAY-series of FPGAs are composed of this type. This device features 824 I/Os in order to transfer data in a more efficient manner. It is powered from a supply voltage of 1.5V. In this case, the FPGA part belongs to the Field Programmable Gate Arrays family. FPGA modules can be attached to development boards using a Surface Mount-connector. With a supply voltage of 1.425V~1.575V, this device operates with ease. FPGAs belonging to the Virtex?-II series are a type of FPGA that belong to the Virtex?-II series of FPGAs. In order to ensure a safe and efficient operation, it is important to maintain a temperature within 0°C~85°C TJ at all times. In this device, 824 outputs are incorporated in order to provide you with maximum flexibility. Fpga chips is designed to maximiTraye space efficiency by containing the FPGA model in Tray. The RAM bits that are offered by this fpga chips are 2654208. Its base part number XC2V6000 can be used to find related parts. The FPGA module's RAM si324kBe reaches 324kB in order to ensure that the program operates in a normal manner. In order to make it work, 1152 pins have been designed. The FPGA consists of 8448 LABs/CLBs. In my opinion, this FPGA could produce fantastic results if mounted in Surface Mount, provided that its specifications are followed. With a 1.5V supply voltage, designers can fully utilize the flexibility of the device. In order for fpga electronics to work, fpga electronics requires a 1.51.5/3.33.3V power supply. 6000000 gates make up the basic block of its construction. It usually uses a 820MHz crystal. To store and transfer data, there are 67584 registers that are used.

XC2V6000-6FFG1152C Features


824 I/Os
Up to 2654208 RAM bits
1152 LABs/CLBs
67584 registers

XC2V6000-6FFG1152C Applications


There are a lot of Xilinx Inc. XC2V6000-6FFG1152C FPGAs applications.

  • Automotive Applications
  • Broadcast
  • Wireless Communications
  • Camera time adjustments
  • Industrial IoT
  • Security systems
  • Video & Image Processing
  • Enterprise networking
  • Aircraft navigation
  • Development Boards and Shields for Microcontrollers
