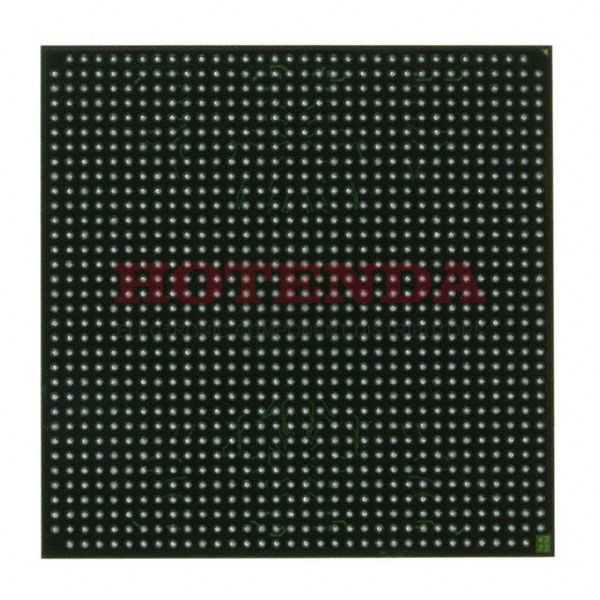

XC2VP40-5FF1152C Overview
The package that contains this software is called 1152-BBGA, FCBGA. This kind of FPGA is composed of FIELD PROGRAMMABLE GATE ARRAY. A total of 692 I/Os are programmed to ensure a more coherent data transfer. There are 43632 logic elements/cells to form a fundamental building block. In order to operate fpga chips, a voltage supply of 1.5V volts is required. There is a Field Programmable Gate Arrays family component in this FPGA part. FPGA modules can be attached to development boards using a Surface Mount-connector. In order for it to operate, the supply voltage must be 1.425V~1.575V . An FPGA belonging to the Virtex?-II Pro series is referred to as an FPGA. Fpga chips is necessary to keep the operating temperature wFpga chipshin 0°C~85°C TJ when the device is operating. In order to make this device as versatile as possible, there are 644 different outputs included. It is for space saving reasons that this FPGA model is contained in Bulk. Having a RAM bit size of 3538944 means that this device will offer you a lot of memory. There is a maximum RAM si432kBe of 432kB on this FPGA module, which is necessary to ensure the normal operation of the program. Fpga electronics contains 4848 LABs/CLBs in an array. In the case of 1.5V supply voltage, designers can take full advantage of its flexibility. The data is stored and transferred using 38784 registers that are used for this purpose.
XC2VP40-5FF1152C Features
692 I/Os
Up to 3538944 RAM bits
38784 registers
XC2VP40-5FF1152C Applications
There are a lot of Xilinx Inc. XC2VP40-5FF1152C FPGAs applications.
- Voice recognition
- Enterprise networking
- Medical imaging
- Server Applications
- Consumer Electronics
- Video & Image Processing
- Broadcast
- Medical Electronics
- Automotive driver's assistance
- Security systems
