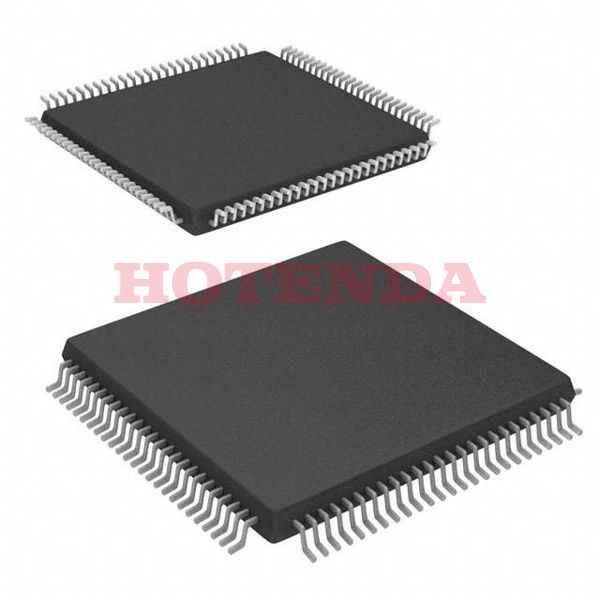

XCS05-3VQ100C

XCS05-3VQ100C

XCS05-3VQ100C

Xilinx Inc.

1.2mm mm FPGAs Spartan? Series 100-TQFP 0.5mm mm 100

SOT-23

XCS05-3VQ100C Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 100-TQFP
Operating Temperature0°C~85°C TJ
PackagingTray
Published 1999
Series Spartan®
JESD-609 Code e0
Part StatusObsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 100
ECCN Code EAR99
Terminal Finish TIN LEAD
HTS Code8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 4.75V~5.25V
Terminal Position QUAD
Terminal FormGULL WING
Peak Reflow Temperature (Cel) 225
Supply Voltage 5V
Terminal Pitch0.5mm
Reach Compliance Code unknown
[email protected] Reflow Temperature-Max (s) 30
Base Part Number XCS05
Pin Count100
Number of Outputs 77
Qualification StatusNot Qualified
Power Supplies5V
Voltage 5V
Number of I/O 77
RAM Size 400B
Clock Frequency 125MHz
Number of Inputs 77
Programmable Logic TypeFIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 238
Total RAM Bits 3200
Number of Gates5000
Number of LABs/CLBs 100
Combinatorial Delay of a CLB-Max 1.6 ns
Number of CLBs 100
Number of Logic Cells100
Number of Equivalent Gates 2000
Height Seated (Max) 1.2mm
Length 14mm
Width 14mm
RoHS StatusNon-RoHS Compliant
Lead Free Contains Lead
In-Stock:4828 items

XCS05-3VQ100C Product Details

XCS05-3VQ100C Overview


There is a 100-TQFP package that includes this component. Fpga chips consists of FIELD PROGRAMMABLE GATE ARRAY elements. There are 77 I/Os for better data transfer. The basic building blocks of logic contain 238 logic elements/cells. 5V volts power it. FPGA parts like this belong to the Field Programmable Gate Arrays family. This FPGA module can be attached to the development board with a Surface Mount. This device is powered by a 4.75V~5.25V battery. There are many types of FPGAs in the Spartan? series, this is one of them. In order to ensure a safe and efficient operation, it is important to maintain a temperature within 0°C~85°C TJ at all times. The device has 77 outputs that are integrated into it. This FPGA model is contained in Tray for space saving. As a whole, it has 100 terminations. Having a RAM bit size of 3200 means that this device will offer you a lot of memory. Parts related to this part can be found using its base part number XCS05. The FPGA module's RAM si400Be reaches 400B in order to ensure that the program operates in a normal manner. 100 LABs/CLBs are configured on this FPGA. Providing the FPGA is mounted in Surface Mount as per the specifications of the IC, then it should work perfectly according to its specifications. Power is provided by a 5V battery that is included with the device. A basic building block for this type of building block consists of 5000 gates. Featuring 100 pins in total, it is a versatile device. Fpga semiconductor typically uses a crystal oscillating at 125MHz. An architecture consists of 100 CLBs. During the construction of the building block, there are 100 logic cells used. There are 2000 equivalent gates in the FPGA that implement the design.

XCS05-3VQ100C Features


77 I/Os
Up to 3200 RAM bits

XCS05-3VQ100C Applications


There are a lot of Xilinx Inc. XCS05-3VQ100C FPGAs applications.

  • Audio
  • ADAS
  • Integrating multiple SPLDs
  • Medical Applications
  • Security systems
  • Automation
  • Cryptography
  • Broadcast
  • Military DSP
  • High Performance Computing
