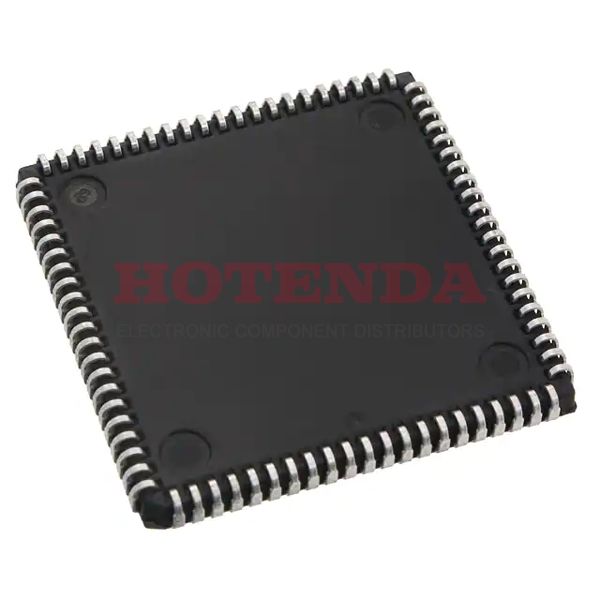

XCS05XL-4PC84C Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
84-LCC (J-Lead)
Number of Pins
84
Operating Temperature
0°C~85°C TJ
Packaging
Tray
Published
1999
Series
Spartan®-XL
JESD-609 Code
e0
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
84
Terminal Finish
Tin/Lead (Sn85Pb15)
Subcategory
Field Programmable Gate Arrays
Technology
CMOS
Voltage - Supply
3V~3.6V
Terminal Position
QUAD
Terminal Form
J BEND
Supply Voltage
3.3V
Terminal Pitch
1.27mm
Base Part Number
XCS05XL
Pin Count
84
Number of Outputs
77
Operating Supply Voltage
3.3V
Number of I/O
61
RAM Size
400B
Clock Frequency
217MHz
Programmable Logic Type
FIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells
238
Total RAM Bits
3200
Number of Gates
5000
Number of LABs/CLBs
100
Speed Grade
4
Number of Registers
360
Combinatorial Delay of a CLB-Max
1.1 ns
Number of CLBs
100
Number of Logic Cells
100
Number of Equivalent Gates
2000
Height Seated (Max)
5.08mm
Length
29.3116mm
Width
29.3116mm
Radiation Hardening
No
RoHS Status
Non-RoHS Compliant
Lead Free
Contains Lead
In-Stock:3742 items
XCS05XL-4PC84C Product Details
XCS05XL-4PC84C Overview
Fpga chips is supplied in the 84-LCC (J-Lead) package. FPGAs of this type consist of FIELD PROGRAMMABLE GATE ARRAY components. A total of 61 I/Os are programmed to ensure a more coherent data transfer. There are 238 logic elements/cells to form a fundamental building block. The supply voltage is 3.3V volts. An FPGA part from the Field Programmable Gate Arrays family. By attaching the Surface Mount connector, you can use this FPGA module with your development board. A supply voltage of 3V~3.6V is needed in order for fpga chips to operate. As part of the Spartan?-XL series of FPGAs, it is a type of FPGA. Operating temperatures should be maintained within the 0°C~85°C TJ range at all times when the unit is in use. This device is equipped with 77 separate outputs, which makes it a very versatile device. It is for
