XCV400E-6FG676C

XCV400E-6FG676C

XCV400E-6FG676C

Xilinx Inc.

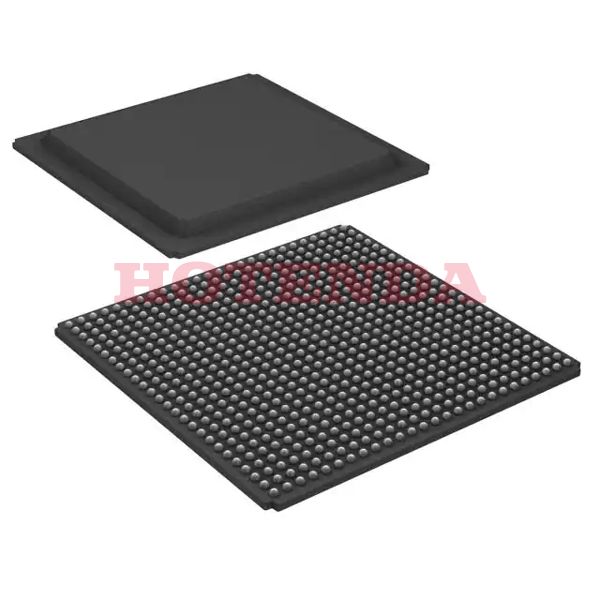

1.8V V FPGAs Virtex?-E Series 676-BBGA, FCBGA 1mm mm 676

SOT-23

XCV400E-6FG676C Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 676-BBGA, FCBGA
Number of Pins 676
Operating Temperature0°C~85°C TJ
PackagingTray
Published 2006
Series Virtex®-E
JESD-609 Code e0
Pbfree Code no
Part StatusObsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 676
ECCN Code 3A991.D
HTS Code8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 1.71V~1.89V
Terminal Position BOTTOM
Terminal FormBALL
Peak Reflow Temperature (Cel) 225
Supply Voltage 1.8V
Terminal Pitch1mm
[email protected] Reflow Temperature-Max (s) 30
Base Part Number XCV400E
Pin Count676
Number of Outputs 404
Operating Supply Voltage1.8V
Number of I/O 404
RAM Size 20kB
Clock Frequency 357MHz
Programmable Logic TypeFIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 10800
Total RAM Bits 163840
Number of Gates569952
Number of LABs/CLBs 2400
Speed Grade 6
Combinatorial Delay of a CLB-Max 0.47 ns
Length 27mm
Width 27mm
Radiation HardeningNo
RoHS StatusNon-RoHS Compliant
Lead Free Contains Lead
In-Stock:3493 items

XCV400E-6FG676C Product Details

XCV400E-6FG676C Overview


A 676-BBGA, FCBGA package is provided with this component. A FIELD PROGRAMMABLE GATE ARRAY-based FPGA is one of these types. Fpga chips is programmed wFpga chipsh 404 I/Os for transferring data in a more coherent manner. A fundamental building block is made up of 10800 logic elements/cells. An electrical supply voltage of 1.8V powers it. There is a Field Programmable Gate Arrays family component in this FPGA part. FPGA modules can be attached to development boards using a Surface Mount-connector. In order for it to operate, the supply voltage must be 1.71V~1.89V . As part of the Virtex?-E series of FPGAs, it is a type of FPGA. During the operation of the system, the operating temperature should remain within the range of 0°C~85°C TJ. There are 404 outputs incorporated in this device. There is an FPGA model contained in Tray in order to conserve space. In total, it has 676 terminations on each end. There are 163840 RAM bits that are available with this device. In order to find related parts, use the part number XCV400E as a base. A significant amount of RAM is allocated to this FPGA module to ensure that the program can operate normally. This cable has 676 pins and is designed to connect to a computer. 2400 LABs/CLBs are configured on this FPGA. Having stated that, if this FPGA is mounted in Surface Mount, then it may be able to perform fantastically according to its specifications. A 1.8V-volt supply allows designers to fully utilize its flexibility. 569952 gates make up the basic block of its construction. This device has a pin count of 676 in fpga semiconductor. Normally, fpga semiconductor uses an oscillator, which oscillates at 357MHz, to create the signal.

XCV400E-6FG676C Features


404 I/Os
Up to 163840 RAM bits
676 LABs/CLBs

XCV400E-6FG676C Applications


There are a lot of Xilinx Inc. XCV400E-6FG676C FPGAs applications.

  • Automotive driver's assistance
  • Server Applications
  • Electronic Warfare
  • Integrating multiple SPLDs
  • Enterprise networking
  • Distributed Monetary Systems
  • Bioinformatics
  • Industrial,Medical and Scientific Instruments
  • Military Temperature
  • Voice recognition
