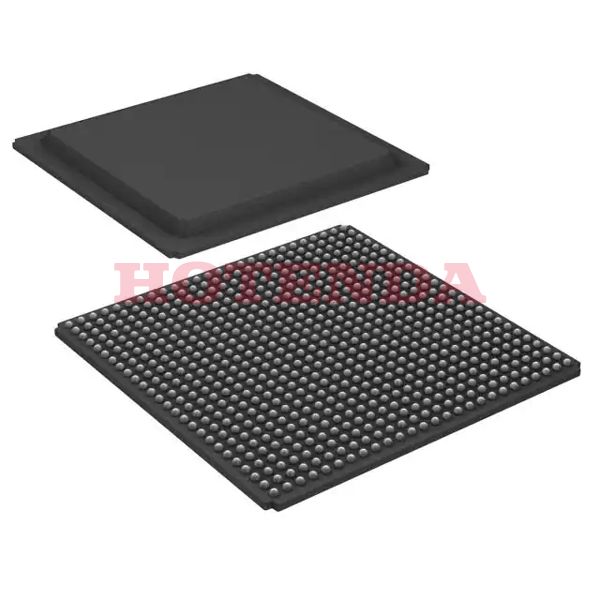

XCV405E-6FG676I

XCV405E-6FG676I

XCV405E-6FG676I

Xilinx Inc.

1.8V V FPGAs Virtex?-E EM Series 676-BBGA, FCBGA 1mm mm 676

SOT-23

XCV405E-6FG676I Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 676-BBGA, FCBGA
Number of Pins 676
Operating Temperature-40°C~100°C TJ
PackagingTray
Published 2002
Series Virtex®-E EM
JESD-609 Code e0
Pbfree Code no
Part StatusObsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 676
ECCN Code EAR99
HTS Code8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 1.71V~1.89V
Terminal Position BOTTOM
Terminal FormBALL
Peak Reflow Temperature (Cel) 225
Supply Voltage 1.8V
Terminal Pitch1mm
[email protected] Reflow Temperature-Max (s) 30
Base Part Number XCV405E
Pin Count676
Number of Outputs 404
Operating Supply Voltage1.8V
Number of I/O 404
RAM Size 70kB
Clock Frequency 357MHz
Programmable Logic TypeFIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 10800
Total RAM Bits 573440
Number of Gates129600
Number of LABs/CLBs 2400
Speed Grade 6
Combinatorial Delay of a CLB-Max 0.47 ns
Length 27mm
Width 27mm
Radiation HardeningNo
RoHS StatusNon-RoHS Compliant
Lead Free Contains Lead
In-Stock:4811 items

XCV405E-6FG676I Product Details

XCV405E-6FG676I Overview


A 676-BBGA, FCBGA package is provided with this component. An FPGA of this type is made up of FIELD PROGRAMMABLE GATE ARRAY gates. There are 404 I/Os for better data transfer. A fundamental building block is made up of 10800 logic elements/cells. 1.8V volts power it. There is a Field Programmable Gate Arrays family component in this FPGA part. With a Surface Mount connector, this FPGA module can be attached to the development board. There is a 1.71V~1.89V-volt supply voltage required for the device to operate. The Virtex?-E EM series FPGA is a type of FPGA that belongs to the Virtex?-E EM family of FPGAs. Operating temperatures should be maintained within the -40°C~100°C TJ range at all times when the unit is in use. The device has 404 outputs that are integrated into it. Fpga chips is designed to maximiTraye space efficiency by containing the FPGA model in Tray. The total number of terminations is 676. The RAM bits that are offered by this fpga chips are 573440. Related parts can be found by using its base part number XCV405E. For the program to work properly, the RAM si70kBe of this FPGA module must reach 70kB GB in order to ensure normal operation. There are 676 pins on this device. 2400 LABs/CLBs are integrated into this FPGA. I think, as long as this FPGA is mounted in Surface Mount, it could perform excellently according to its specifications as long as you mount it in Surface Mount. The 1.8V supply voltage provides designers with full flexibility in their designs. There are 129600 gates that make up its basic building block. With a total of 676 pins, it is equipped with a high level of security. It usually uses a 357MHz crystal.

XCV405E-6FG676I Features


404 I/Os
Up to 573440 RAM bits
676 LABs/CLBs

XCV405E-6FG676I Applications


There are a lot of Xilinx Inc. XCV405E-6FG676I FPGAs applications.

  • Secure Communication
  • Data Center
  • OpenCL
  • Device controllers
  • Medical Electronics
  • Medical Applications
  • Distributed Monetary Systems
  • Medical ultrasounds
  • Video & Image Processing
  • Cryptography
