Name: 150238-5022-TB
Brand: 3M
SKU: 150238-5022-TB
Availability: InStock

new-10%

150238-5022-TB

Manufacturer part number:150238-5022-TB

Manufacturer:3M

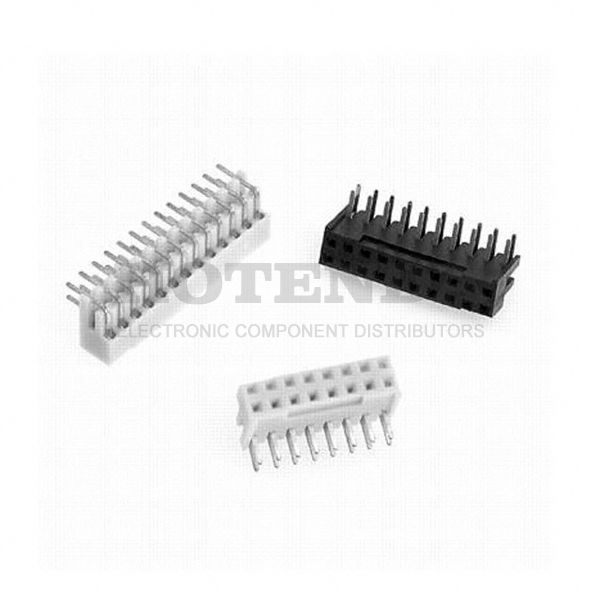

Description:2 RowsReceptacleSolderCopper AlloyThrough Hole, Right AngleTrayGoldThermoplastic38 PositionsFemale Socket

Case Package:SOT-23

Datasheet:150238-5022-TB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Contact Plating	Gold
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Thermoplastic
Housing Material	Plastic
Operating Temperature	-55°C~105°C
Packaging	Tray
Published	2015
Series	1502
Feature	Board Guide
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle
Number of Positions	38
Color	Black
Number of Rows	2
Voltage - Rated	500VDC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	1A
Pitch	2.0066mm
Insulation Height	0.179 4.55mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Contact Length - Post	0.100 2.54mm
Contact Finish - Post	Tin-Lead
Housing Color	Black
Height	4.55mm
Length	36mm
Width	7.87mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	200.0μin 5.08μm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

150238-5022-TB Product Details

150238-5022-TB Overview

Currently, it is packaged in Receptacle.The mounting type of the device is Through Hole, Right Angle.A Tray case is used to package the product.A product of the 1502 Series, it belongs to the range of products of that series.A number of features make the Board Guide feature more powerful.Through Hole represents the mounting point for the part.-55°C~105°C Operating Temperature is the default operating temperature for the device.
