Name: SDL-108-TT-12
Brand: Samtec Inc.
SKU: SDL-108-TT-12
Availability: InStock

new-10%

SDL-108-TT-12

Manufacturer part number:SDL-108-TT-12

Manufacturer:Samtec Inc.

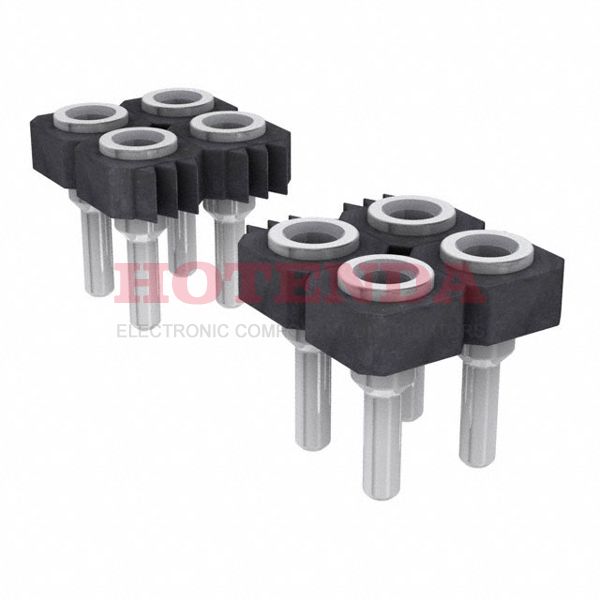

Description:2 Rows Receptacle Solder Beryllium Copper Through Hole Tube Tin Liquid Crystal Polymer (LCP) 16 Positions Female Socket

Case Package:SOT-23

Datasheet:SDL-108-TT-12 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Plastic
Operating Temperature	-55°C~105°C
Packaging	Tube
Published	2008
Series	SDL
Pbfree Code	yes
Part Status	Discontinued
Termination	Solder
Connector Type	Receptacle
Number of Positions	16
Number of Rows	2
Additional Feature	LOW PROFILE
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Insulation Height	0.095 2.41mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.095 2.41mm
Housing Color	Black
Height	1.27mm
Length	20.3mm
Width	5.08mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SDL-108-TT-12 Product Details

SDL-108-TT-12 Overview

Packaging is Receptacle.Through Hole is the mounting type.Packaging for the product is carried out via a Tube case.As a product of the SDL Series, it can be found in this category.There are also other features such as LOW PROFILE, to name only a few.In this case, Through Hole mounts the part.The device is operating at -55°C~105°C Operating Temperature.
