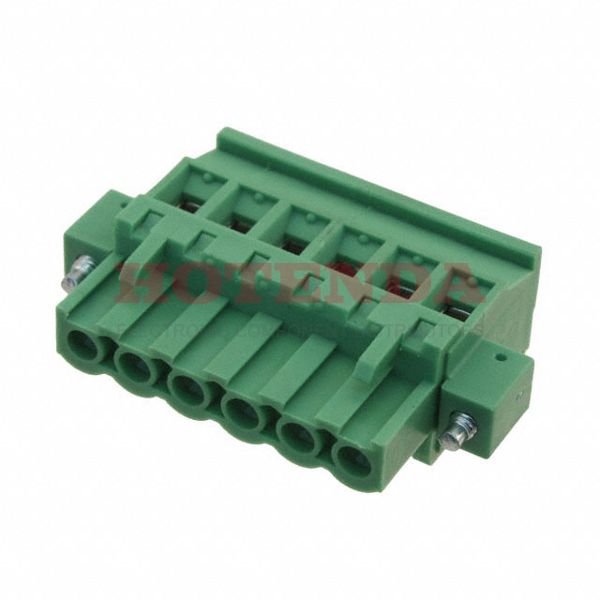

Name: 20020009-G061B01LF
Brand: Amphenol Anytek
SKU: 20020009-G061B01LF
Price: 1.27000 USD
Availability: InStock

new-10%

20020009-G061B01LF

Manufacturer part number:20020009-G061B01LF

Manufacturer:Amphenol Anytek

Description:20020009-G061B01LF datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Amphenol Anytek stock available on our website

Case Package:SOT-23

Datasheet:20020009-G061B01LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Thermoplastic Resin
Operating Temperature	-40°C~115°C
Packaging	Bulk
Series	02-500
Feature	Mating Flange, Retention Latches (Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Terminal Block
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	26mm
Insulation Height	1.024 26.01mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	6
Voltage	300V
Max Voltage Rating (AC)	300V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	24 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-24 AWG
Torque - Screw	0.4 Nm (3.5 Lb-In)
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	1-2.5mm2
Wire Strip Length	6-7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Max Supply Voltage (AC)	300V
Length	40mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

20020009-G061B01LF Product Details

20020009-G061B01LF Overview

A Terminal Block packaging is included.Mounting type Free Hanging (In-Line) is assigned to the device.A Bulk case is used to package the product.This product is from the 02-500 Series.A number of advantages can be derived from its Mating Flange, Retention Latches (Wire Side) feature.Mounting of the part is based on Cable, Free Hanging.It runs at -40°C~115°C Operating Temperature.As with other Plug, Female Sockets products, this part has a lot of benefits.
