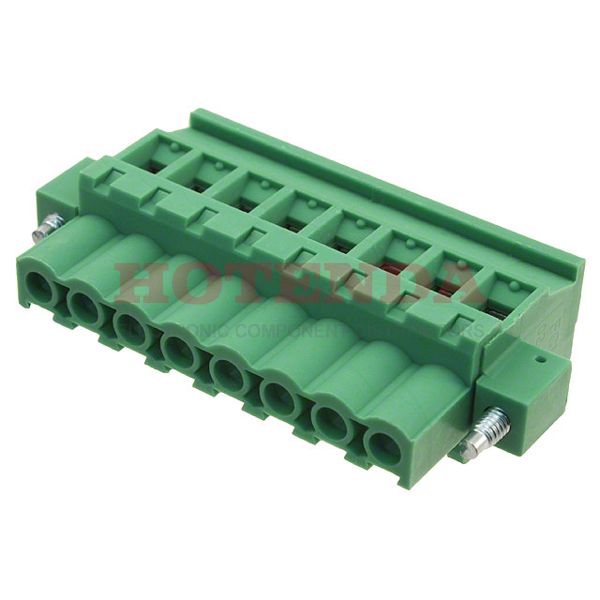

Name: 20020011-G081B01LF
Brand: Amphenol Anytek
SKU: 20020011-G081B01LF
Price: 3.51000 USD
Availability: InStock

new-10%

20020011-G081B01LF

Manufacturer part number:20020011-G081B01LF

Manufacturer:Amphenol Anytek

Description:20020011-G081B01LF datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Amphenol Anytek stock available on our website

Case Package:SOT-23

Datasheet:20020011-G081B01LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Thermoplastic Resin
Operating Temperature	-40°C~115°C
Packaging	Bulk
Published	2011
Series	02-500
Feature	Mating Flange, Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Terminal Block
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.197 5.00mm
Orientation	Straight
Depth	12.6mm
Insulation Height	1.024 26.01mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	8
Voltage	300V
Max Voltage Rating (AC)	300V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	12 AWG
Wire/Cable Gauge	24 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-24 AWG
Torque - Screw	0.4 Nm (3.5 Lb-In)
Number of Ways	8
Safety Approval	UL
Plug Wire Entry	270°
Wire Gauge or Range - mm²	1-2.5mm2
Wire Strip Length	6-7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Max Supply Voltage (AC)	300V
Length	49.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free

20020011-G081B01LF Product Details

20020011-G081B01LF Overview

Terminal Block packaging is included.A Free Hanging (In-Line) mounting type is specified for the device.An Bulk case is utilized for packaging the product.It's part of the 02-500 Series.A number of aspects of its Mating Flange, Retention Latches (Non-Wire Side) feature make it more powerful.There's a Cable, Free Hanging mount on the part.Operating temperature is -40°C~115°C.There are many benefits that this part shares with other Plug, Female Sockets products as well.
