AD585SQ/883B Overview

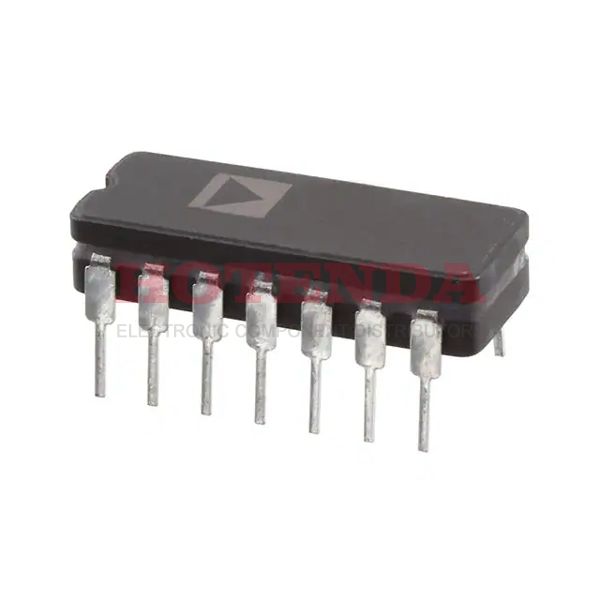

Packaging for the buffer amplifier is in the form of a 14-CDIP (0.300, 7.62mm) case. An op amp ic of the Sample and Hold type. As far as the packaging is concerned, buffer op amp is delivered in a Tube case. There have been a total of 14 terminations over the past year. In this case, there are 14 pins on the board. I would like you to keep in mind that this buffer amplifier needs to be run at a voltage of 15V. 14 pins are included on the operational amplifiers. The mounting type that is recommended for this electrical part is Through Hole. In terms of operating temperatures, this buffer amplifier works very well at a temperature of around -55°C~125°C . There are 1 circuits on op amps. As a recommendation, this electronic component should be used with a power supply that can deliver 10mA.
AD585SQ/883B Features
14 Pins
supply voltage of 15V
AD585SQ/883B Applications
There are a lot of Analog Devices Inc. AD585SQ/883B Instrumentational OP Amps applications.
- Communication device
- Navigation
- Communication
- Signal operation
- Medical imaging
- Ultrasound transducers
- Video data acquisition
- Active probe
- Gaming industry
- Band-stop filter
