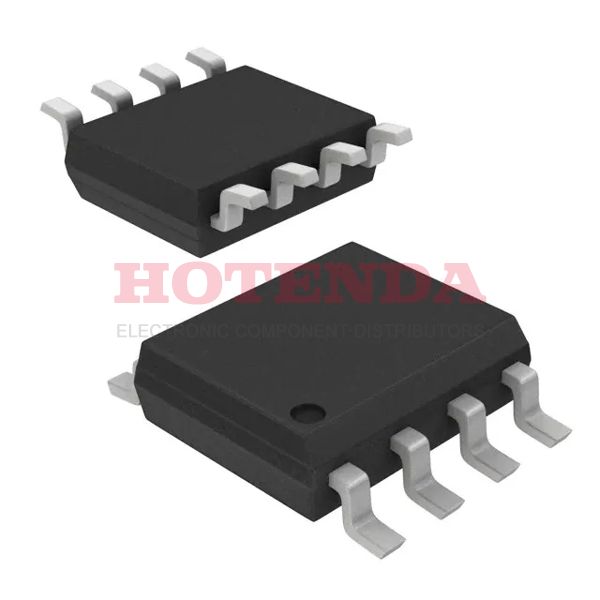

AD706AR

Manufacturer part number:AD706AR

Manufacturer:Hotenda

Description:2 Channels 15mA per Channel 50pA 132 dB Instrumentational OP Amps 0.0004μA 4V~36V ±2V~18V AD706 8 Pins 8-SOIC (0.154, 3.90mm Width)

Case Package:SOT-23

Datasheet:AD706AR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Plating	Lead, Tin
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width)
Surface Mount	YES
Number of Pins	8
Operating Temperature	-40°C~85°C
Packaging	Tube
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Subcategory	Operational Amplifier
Max Power Dissipation	650mW
Technology	BIPOLAR
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	235
Number of Functions	2
Supply Voltage	15V
[email protected] Reflow Temperature-Max (s)	20
Base Part Number	AD706
Pin Count	8
Number of Channels	2
Operating Supply Current	1.2mA
Nominal Supply Current	1.2mA
Power Dissipation	650mW
Quiescent Current	600μA
Slew Rate	0.15V/μs
Architecture	VOLTAGE-FEEDBACK
Amplifier Type	General Purpose
Common Mode Rejection Ratio	132 dB
Current - Input Bias	50pA
Voltage - Supply, Single/Dual (±)	4V~36V ±2V~18V
Output Current per Channel	15mA
Input Offset Voltage (Vos)	100μV
Gain Bandwidth Product	800 kHz
Neg Supply Voltage-Nom (Vsup)	-15V
Unity Gain BW-Nom	800 kHz
Voltage Gain	126.02dB
Average Bias Current-Max (IIB)	0.0004μA
Power Supply Rejection Ratio (PSRR)	132dB
Low-Offset	YES
Frequency Compensation	YES
Voltage - Input Offset	30μV
Low-Bias	YES
Dual Supply Voltage	15V
Input Capacitance	2pF
Input Voltage Noise Density	17nV/sqrt Hz
Height	1.5mm
Length	5mm
Width	4mm
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

AD706AR Product Details

AD706AR Overview

Op amp is packaged in 8-SOIC (0.154, 3.90mm Width) case. A General Purpose-type buffer amplifier is shown here. The case in which buffer amplifier is delivered is called a Tube case. The number of terminations approaches 8. Buffer amplifier has a total of 8 pins. I would like to remind you that this buffer op amp should be powered by an 15V battery. Instrumentation amplifier is a part of Operational Amplifier. It has 8 pins that make up the linear amplifier. The input offset voltage is 100μV. For this electronic part, it is recommended that you mount it with type Surface Mount. Regarding the operating temperature of this device, instrumentation amplifier performs well at a temperature of -40°C~85°C . A supply current of 1.2mA can be used to operate this linear amplifier. 126.02dB should be the voltage gain. There are a total of 2 channels available on the op amps. Buffer amplifier has a quiescent current of 600μA.
