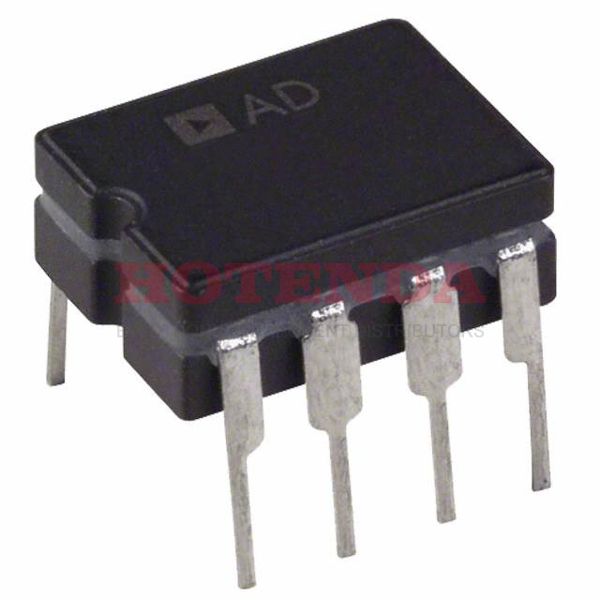

AD711AQ Overview
Op amp is packaged in 8-CDIP (0.300, 7.62mm) case. Op amps are J-FET types of amplifier on the chip. Instrumentation amplifier is delivered in a Tube case. Linear amplifier includes 8 pins. Regarding input offset voltage, buffer amplifier rates 1mV voltage. Through Hole is the recommended mounting type of operational amplifiers. With regard to operating temperature, op amp ranges -40°C~85°C. Operational amplifier can operate supply current at 2.8mA. The voltage gain should stay at 112.04dB. There are 1 circuits on op amps. Instrumentation amplifier has 1 channels on it. It should not lower than -40°C to operate buffer amplifier. It is recommended that op amp be used at temperatures below 85°C. Op amp has total of 1 elements. To run supply current of buffer amplifier under 2.5mA. With regard tp supply voltage, op amp is used under 36V. To keep the buffer amps' supply voltage higher than 9V. Conduct linear amplifier under the dual suuply voltage of 18V. Linear amplifier has a quiescent current of 2.8mA. There are 1 amplifiers on it.
AD711AQ Features
112.04dB voltage gain
AD711AQ Applications
There are a lot of Analog Devices Inc.
AD711AQ Instrumentational OP Amps applications.
- Proportional operation circuits
- Inverse/same-phase proportional circuit
- Addition operation circuits
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
