OP249AZ Overview

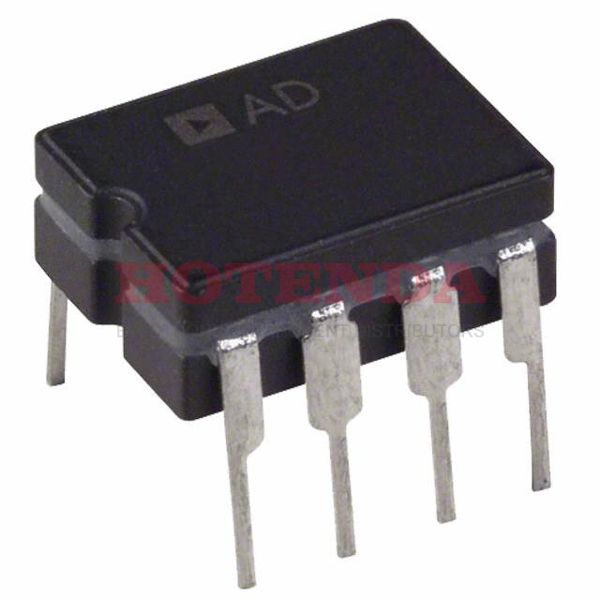

The linear amplifier is packaged in a 8-CDIP (0.300, 7.62mm) case which makes it easy for the consumer to handle. An op amp of this type is a J-FET-type. A Tube case is used to deliver the buffer op amp. The number of terminations approaches 8. Buffer amplifier has a total of 8 pins. I would like to remind you that this buffer op amp should be powered by an 15V battery. It should be noted that this op amp is a type of Operational Amplifier device. In total, the buffer amplifier consists of 8 pins. Regarding input offset voltage, buffer amplifier rates 750μV voltage. For this electronic part, it is recommended that you mount it with type Through Hole. The buffer amplifier functions well at -55°C~125°C as far as operating temperature is concerned. An 7mA volt supply current is needed for this linear amplifier to operate. You should keep the voltage gain at 122.92dB for the time being. There are 2 channels on the operational amplifiers. The operating supply voltage of the buffer op amp is rated at 15V. There is an 3.5mA quiescent current running through op amp ic.
OP249AZ Features
8 Pins
supply voltage of 15V
122.92dB voltage gain
OP249AZ Applications
There are a lot of Analog Devices Inc. OP249AZ Instrumentational OP Amps applications.
- Video data acquisition
- Laptop
- Portable docking station
- earphone
- Signal operation
- Automation control systems
- pH (acidity)
- Non-polarized electrodes
- Fast A/D and D/A converters
- Radiation thermometry transducers
