HCPL-7800#500 Overview

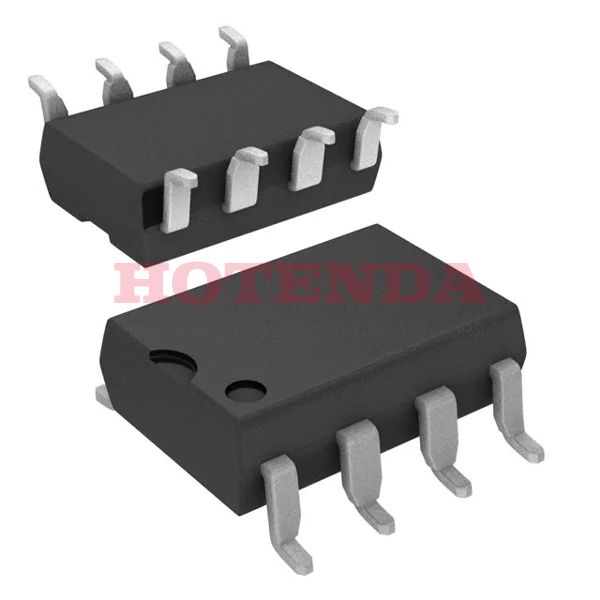

In the package, you will find a 8-SMD, Gull Wing-case to contain the op amp ic. The instrumentation amplifier in this picture is of the Isolation-type. A Tape & Reel (TR) case is used for delivering the op amp. During the past two weeks, there have been close to 8 terminations. This linear amplifier should be powered by an 5V battery. The op amp ic has an array of 8 pins on it. Op amp rates 300μV as input offset voltage. For this electrical component, Surface Mount is the recommended mounting type. According to the manufacturer, this buffer op amp works well at -40°C~85°C , which is a good operating temperature. Using an 10.9mA supply current, this operational amplifier ics can be operated. A instrumentation amplifier like this has 1 circuits. The operating supply voltage of the buffer op amp is rated at 5V. In this op amp ic, the minimum voltage gain is 7.76.
HCPL-7800#500 Features
supply voltage of 5V
HCPL-7800#500 Applications
There are a lot of Broadcom Limited
HCPL-7800#500 Instrumentational OP Amps applications.
- Multiplication circuits
- Division circuits
- Precision measurement
- Power control
- Information processing
- Weak signal detection
- Signal amplification
- Signal filtering
- Signal operation
- Video computer boards
