HSMS-C170 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
9 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
0805 (2012 Metric)
Number of Pins
2
Shape
Rectangular
Packaging
Tape & Reel (TR)
Published
2009
Size / Dimension
2.00mm Lx1.25mm W
JESD-609 Code
e4
Part Status
Active
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
Number of Terminations
2
ECCN Code
EAR99
Terminal Finish
Gold (Au) - with Nickel (Ni) barrier
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Color
Red
Subcategory
Visible LEDs
Power Rating
52mW
Packing Method
TR, 7 INCH
Number of Functions
1
Depth
1.25mm
Base Part Number
HSMS-C170
Case Code (Metric)
2012
Case Code (Imperial)
0805
Number of Elements
1
Configuration
Standard
Power Dissipation
52mW
Voltage - Forward (Vf) (Typ)
2.1V
Viewing Angle
170°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
20mA
Lens Style
Rectangle with Flat Top
Lens Size
1.40mmx1.25mm
Luminous Intensity
10 mcd
Millicandela Rating
10mcd
Lens Transparency
Diffused
Wavelength - Peak
630nm
Lens Color
White
Reverse Voltage
5V
Wavelength - Dominant
626nm
Height
800μm
REACH SVHC
No SVHC
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:14755 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.098923
$0.098923
10
$0.093324
$0.93324
100
$0.088041
$8.8041
500
$0.083058
$41.529
1000
$0.078356
$78.356
HSMS-C170 Product Details
Description:

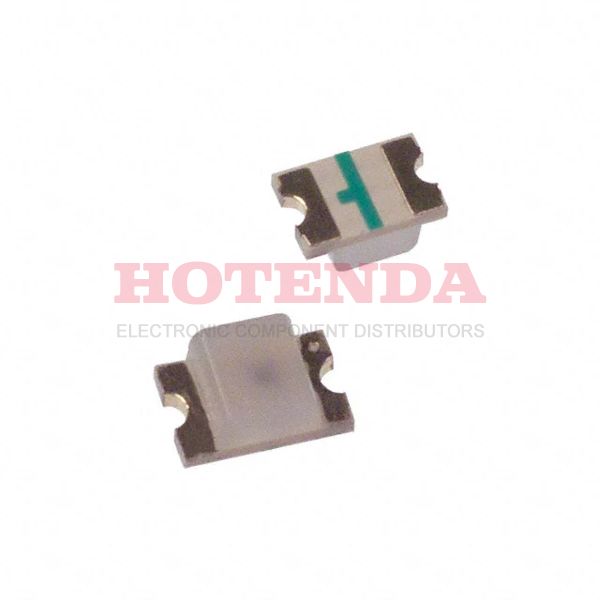

The Broadcom LED Indication - Discrete HSMS-C170 is a red diffused chip surface-mount LED (SMD) designed for use in a variety of applications. This LED is designed to provide a bright, uniform light output with a wide viewing angle. It is also designed to be highly reliable and long-lasting.
