Name: 0015910487
Brand: Molex
SKU: 0015910487
Price: 4.04000 USD
Availability: InStock

new-10%

0015910487

Manufacturer part number:0015910487

Manufacturer:Molex

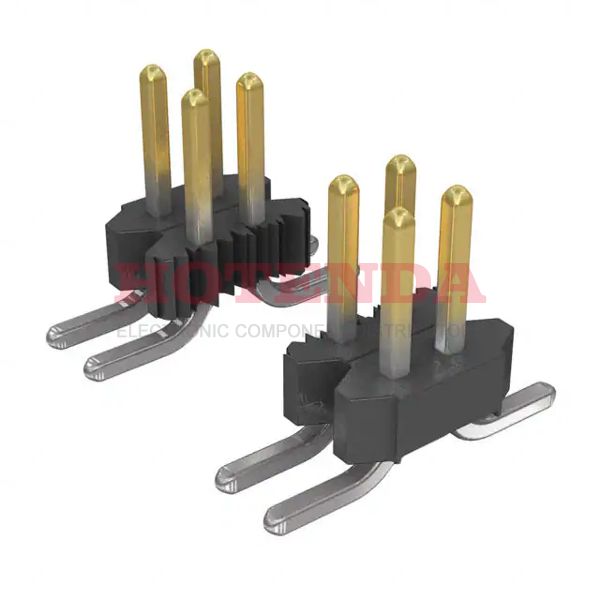

Description:0015910487 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0015910487 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	Copper Alloy
Mount	Surface Mount
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Material	Polymer
Packaging	Tube
Series	C-Grid 71308
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Breakaway
Number of Positions	48
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Number of Rows	2
Gender	Male
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Total Number of Contacts	48
Orientation	Straight
Depth	5.08mm
Insulation Height	0.090 2.29mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Reach Compliance Code	unknown
Pitch - Mating	0.100 2.54mm
Row Spacing - Mating	0.100 (2.54mm)
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	0.320 8.13mm
UL Flammability Code	94V-0
Housing Color	Black
Max Voltage Rating (AC)	250V
Length	60.96mm
Contact Finish Thickness - Mating	15.0μin 0.38μm
Contact Finish Thickness - Post	74.8μin 1.90μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0015910487 Product Details

0015910487 Overview

You'll get Header, Breakaway packages.It's mounted Surface Mount.This product is packaged in a case marked Tube.This product is part of the C-Grid 71308 Series.It works best at below 105°C.A minimum operating temperature of -40°C is required for this device.A possible application of the device would be Automotive, General Purpose, Lighting, Medical, Telecommunications.Several benefits come from the Board Guide feature.There's a Surface Mount on the part.
