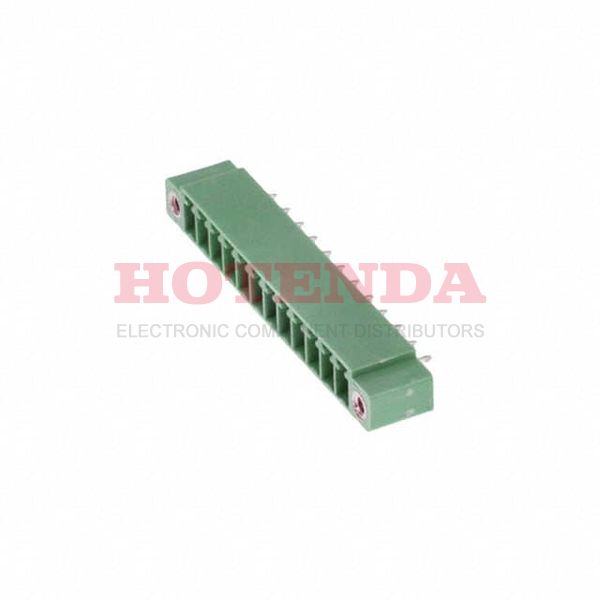

Name: 0395156012
Brand: Molex
SKU: 0395156012
Price: 4.55000 USD
Availability: InStock

new-10%

0395156012

Manufacturer part number:0395156012

Manufacturer:Molex

Description:0395156012 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0395156012 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	Eurostyle ESE 39515
Feature	Mating Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	12
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Pitch	0.150 3.81mm
Orientation	Vertical
Insulation Height	0.360 9.14mm
Termination Style	Solder
Number of Contacts	12
Voltage	300V
Contact Tail Length	0.138 3.50mm
Number of Levels	1
Current	8A
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	8A
Positions Per Level	12
Header Orientation	Vertical
Number of Positions Per Level	12
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0395156012 Product Details

0395156012 Overview

This device has a mounting type of Through Hole.We package the product with a Bulk case.It is part of the Eurostyle ESE 39515 Series of products.It works best at below 105°C.The device must run at -40°C degrees.A number of advantages are provided by its Mating Flange feature.There is a mounting hole at Through Hole.As a result, the device runs at -40°C~105°C Operating Temperature.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
