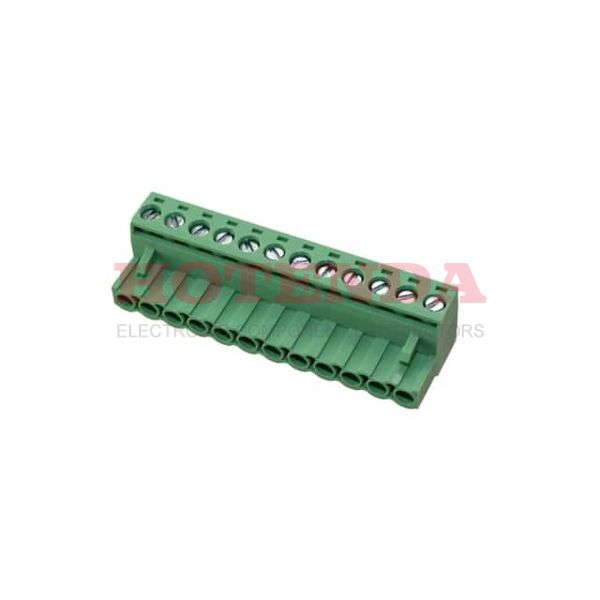

Name: 0395205012
Brand: Molex
SKU: 0395205012
Price: 7.89000 USD
Availability: InStock

new

0395205012

Manufacturer part number:0395205012

Manufacturer:Molex

Description:0395205012 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0395205012 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Phosphor Bronze
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~115°C
Packaging	Bulk
Series	Eurostyle ESE 39520
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
Type	Plug, Female Sockets
Color	Green
Pitch	0.197 5.00mm
Orientation	Right Angle
Depth	18.2mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Max Supply Voltage	300V
Number of Levels	1
Current	18A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-30 AWG
Torque - Screw	0.56 Nm (5.0 Lb-In)
Plug Wire Entry	180°
Wire Strip Length	6.5mm
Number of Positions Per Level	12
Length	60mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0395205012 Product Details

0395205012 Overview

This device's mounting type is Free Hanging (In-Line).It has been determined that a Bulk case is necessary to package the product.The product is a part of the Eurostyle ESE 39520 Series.There are a number of advantages to its Retention Latches (Non-Wire Side) feature.In this case, Cable, Free Hanging mounts the part.The device is operating at -40°C~115°C Operating Temperature.This chip shouldn't have a supply voltage over 300V.This part shares lots of benefits with other Plug, Female Sockets products.
