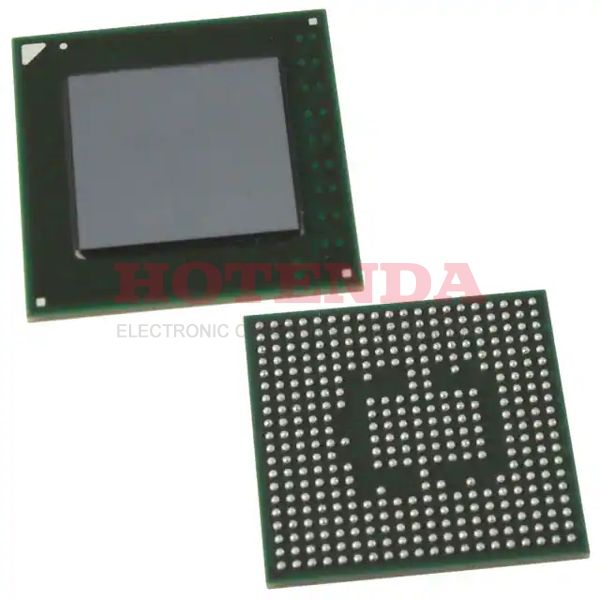

EP2AGX65CU17C4N Overview
The package that contains this software is called 358-LFBGA, FCBGA. A FIELD PROGRAMMABLE GATE ARRAY-based FPGA is one of these types. There are 156 I/Os for better data transfer. In order to construct a fundamental building block, 60214 logic elements/cells are required. In order for the device to operate, a supply voltage of 0.9V volts needs to be provided. FPGA modules can be attached to development boards using a Surface Mount-connector. This device is powered by a 0.87V~0.93V battery. There are many types of FPGAs in the Arria II GX series, this is one of them. Fpga chips is recommended that the operating temperature be kept wFpga chipshin the range 0°C~85°C TJ while the machine is operating. A device such as this one has 156 outputs built into it. Fpga chips is designed to maximiTraye space efficiency by containing the FPGA model in Tray. In total, it has a total of 358 terminations. As far as the RAM bits are concerned, this device offers you a total of 5371904. If you are looking for related parts, you can use the base part number EP2AGX65 as a starting point. 2530 LABs/CLBs are configured on this FPGA. In order for fpga electronics to work, fpga electronics requires a 0.91.2/3.31.52.5V power supply. Most of the time, it uses a crystal oscillating at 500MHz to generate the signal.
EP2AGX65CU17C4N Features
156 I/Os
Up to 5371904 RAM bits
EP2AGX65CU17C4N Applications
There are a lot of Intel
EP2AGX65CU17C4N FPGAs applications.
- Random logic
- ASIC prototyping
- Medical imaging
- Computer hardware emulation
- Integrating multiple SPLDs
- Voice recognition
- Cryptography
- Filtering and communication encoding
- Aerospace and Defense
- Medical Electronics
