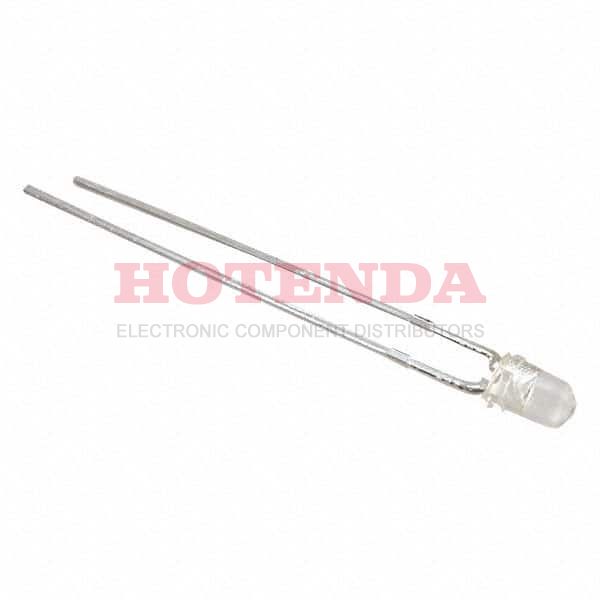

Name: WP7104PBC/Z
Brand: Kingbright
SKU: WP7104PBC/Z
Availability: InStock

new-10%

WP7104PBC/Z

Manufacturer part number:WP7104PBC/Z

Manufacturer:Kingbright

Description:WP7104PBC/Z datasheet pdf and LED Indication - Discrete product details from Kingbright stock available on our website

Case Package:SOT-23

Datasheet:WP7104PBC/Z Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	Radial
Packaging	Bulk
Published	2008
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Color	Blue
Additional Feature	HIGH RELIABILITY
HTS Code	8541.40.20.00
Packing Method	TAPE AND REEL
Number of Functions	1
Terminal Pitch	2.54mm
Operating Temperature (Max)	85°C
Operating Temperature (Min)	-40°C
Configuration	Standard
Voltage - Forward (Vf) (Typ)	3.2V
Viewing Angle	20°
Optoelectronic Device Type	SINGLE COLOR LED
Forward Current	30mA
Current - Test	20mA
Lens Style	Round with Domed Top
Lens Size	3mm T-1
Luminous Intensity	3 cd
Millicandela Rating	3000mcd
Lens Transparency	Clear
Wavelength - Peak	458nm
Lens Color	Colorless
Wavelength - Dominant	465nm
T-code	T-1
Height	5.9mm
RoHS Status	RoHS Compliant

About WP7104PBC/Z

The WP7104PBC/Z from Kingbright is a high-performance microcontroller designed for a wide range of embedded applications. This component features WP7104PBC/Z datasheet pdf and LED Indication - Discrete product details from Kingbright stock available on our website.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the WP7104PBC/Z, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
