Name: ACDBAT3100-HF
Brand: Comchip Technology
SKU: ACDBAT3100-HF
Availability: InStock

new-10%

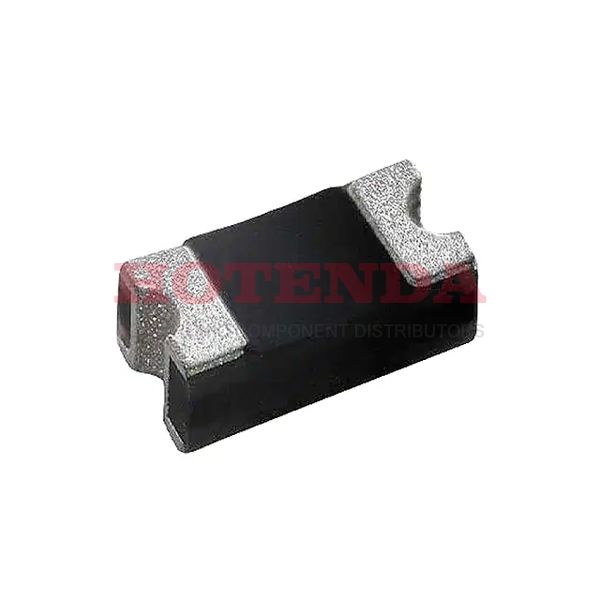

ACDBAT3100-HF

Manufacturer part number:ACDBAT3100-HF

Manufacturer:Comchip Technology

Description:ACDBAT3100-HF datasheet pdf and Diodes - Rectifiers - Single product details from Comchip Technology stock available on our website

Case Package:SOT-23

Datasheet:ACDBAT3100-HF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	2010 (5025 Metric)
Diode Element Material	SILICON
Packaging	Tape & Reel (TR)
Published	2013
Series	Automotive, AEC-Q101
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Additional Feature	LOW POWER LOSS
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PDSO-N2
Operating Temperature (Max)	150°C
Number of Elements	1
Configuration	SINGLE
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	500μA @ 100V
Voltage - Forward (Vf) (Max) @ If	850mV @ 3A
Operating Temperature - Junction	-55°C~150°C
Output Current-Max	3A
Application	EFFICIENCY
Voltage - DC Reverse (Vr) (Max)	100V
Max Reverse Voltage (DC)	100V
Average Rectified Current	3A
Number of Phases	1
Capacitance @ Vr, F	180pF @ 4V 1MHz
Non-rep Pk Forward Current-Max	80A
Reverse Current-Max	200μA
RoHS Status	ROHS3 Compliant

ACDBAT3100-HF Product Details

ACDBAT3100-HF Overview

This device has an average rectified current of 3A volts.Upon reaching 200μA, there is no more reverse current allowed.Phase diode rectifier is possible to produce a maximum output current by setting the output current to 3A.
