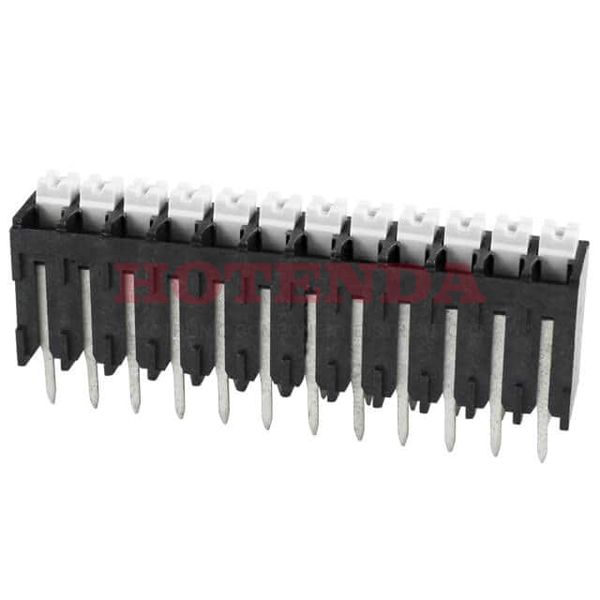

Name: TBLH10V-350-12BK
Brand: CUI Devices
SKU: TBLH10V-350-12BK
Price: 4.13000 USD
Availability: InStock

new-10%

TBLH10V-350-12BK

Manufacturer part number:TBLH10V-350-12BK

Manufacturer:CUI Devices

Description:0.138 3.50mm Black Tray Liquid Crystal Polymer (LCP) Through Hole Vertical with Board Screwless - Push Button Clamp 1 Levels 16-24 AWG TBLH10V-350

Case Package:SOT-23

Datasheet:TBLH10V-350-12BK Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-40°C~130°C
Packaging	Tray
Series	TBLH10V-350
Feature	Push Button Actuated
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Color	Black
Pitch	0.138 3.50mm
Wire Gauge	16-24 AWG
Voltage	300V
Number of Levels	1
Current	10A
Positions Per Level	12
Mating Orientation	Vertical with Board
Wire Termination	Screwless - Push Button Clamp
RoHS Status	RoHS Compliant

TBLH10V-350-12BK Product Details

TBLH10V-350-12BK Overview

Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.The product is a part of the TBLH10V-350 Series.In many ways, Push Button Actuated makes it more powerful.Operating temperature is set to -40°C~130°C.
