Name: TBP01R1-508-06BE
Brand: CUI Devices
SKU: TBP01R1-508-06BE
Price: 0.98000 USD
Availability: InStock

new-10%

TBP01R1-508-06BE

Manufacturer part number:TBP01R1-508-06BE

Manufacturer:CUI Devices

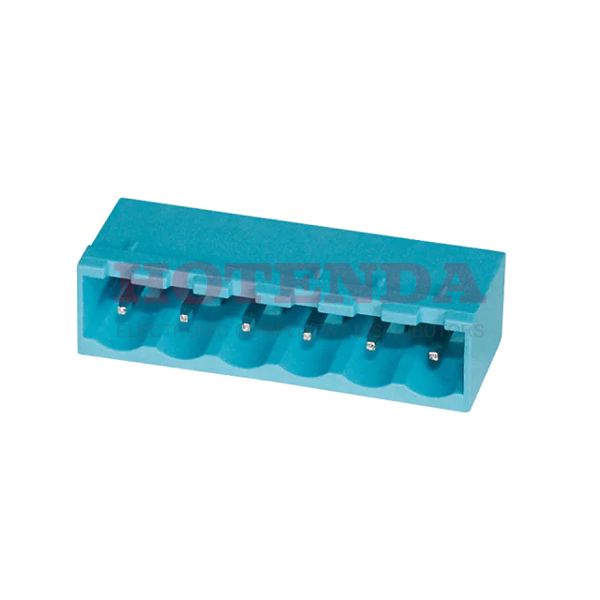

Description:Bulk 0.200 5.08mm Blue 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) TBP01R1-508 Polyamide (PA66), Nylon 6/6 Tin Copper Alloy

Case Package:SOT-23

Datasheet:TBP01R1-508-06BE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	TBP01R1-508
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	6
Color	Blue
Pitch	0.200 5.08mm
Insulation Height	0.335 8.51mm
Termination Style	Solder
Contact Tail Length	0.157 4.00mm
Number of Levels	1
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	16A
Voltage - IEC	320V
Positions Per Level	6
Header Orientation	90°, Right Angle
Current - IEC	20A
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

TBP01R1-508-06BE Product Details

TBP01R1-508-06BE Overview

Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the TBP01R1-508 Series.It operates at an operating temperature of -40°C~105°C.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
