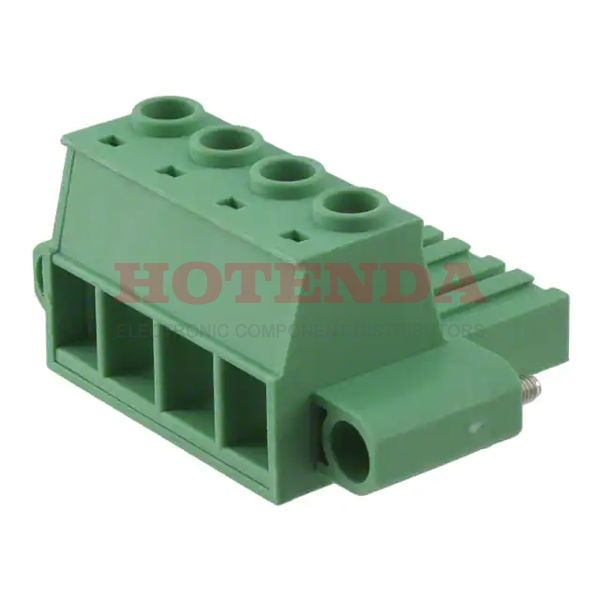

Name: 1913594
Brand: Phoenix Contact
SKU: 1913594
Price: 20.96000 USD
Availability: InStock

new

1913594

Manufacturer part number:1913594

Manufacturer:Phoenix Contact

Description:1913594 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1913594 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Silver
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	36.669995g
Packaging	Bulk
Published	2002
Series	COMBICON PC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	1kV
Pitch	0.400 10.16mm
Orientation	Right Angle
Depth	39mm
Insulation Height	1.085 27.55mm
Current Rating	41A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	4
Voltage	600V
Max Supply Voltage	1kV
Max Current Rating	41A
Number of Levels	1
Current	50A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	8 AWG
Number of Decks	1
Wire Gauge or Range - AWG	8-20 AWG
Voltage - IEC	1kV
Torque - Screw	1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.75-10mm2
Wire Strip Length	12mm
Screw Size	M4
Height	39mm
Length	58.4mm
Width	58.4mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1913594 Product Details

1913594 Overview

The packaging contains Screw, Socket.The device's mounting type is Free Hanging (In-Line).It has been determined that a Bulk case is necessary to package the product.This product is part of the COMBICON PC Series.There are a number of advantages to its Mating Flange feature.Mounted by Free Hanging, Panel.This chip should not be supplied with voltage greater than 1kV volts.There are a lot of similarities between this part and other Plug, Female Sockets products.
