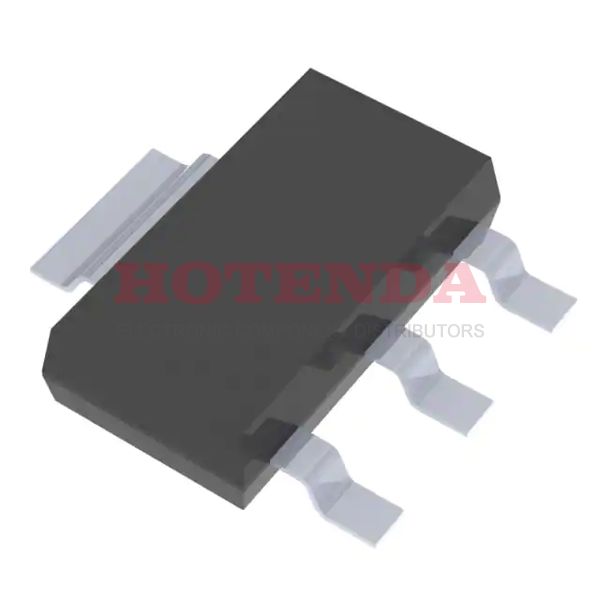

DCP69-25-13 Overview
This device has a DC current gain of 160 @ 500mA 1V, which is the ratio between the base current and the collector current.When VCE saturation is 500mV @ 100mA, 1A, transistor means Ic has reached transistors maximum value (saturated).An emitter's base voltage can be kept at 5V to gain high efficiency.In this part, there is a transition frequency of 200MHz.Breakdown input voltage is 20V volts.A maximum collector current of 1A volts can be achieved.
DCP69-25-13 Features
the DC current gain for this device is 160 @ 500mA 1V
the vce saturation(Max) is 500mV @ 100mA, 1A
the emitter base voltage is kept at 5V
a transition frequency of 200MHz
DCP69-25-13 Applications
There are a lot of Diodes Incorporated DCP69-25-13 applications of single BJT transistors.
- Interface
- Muting
- Inverter
- Driver
