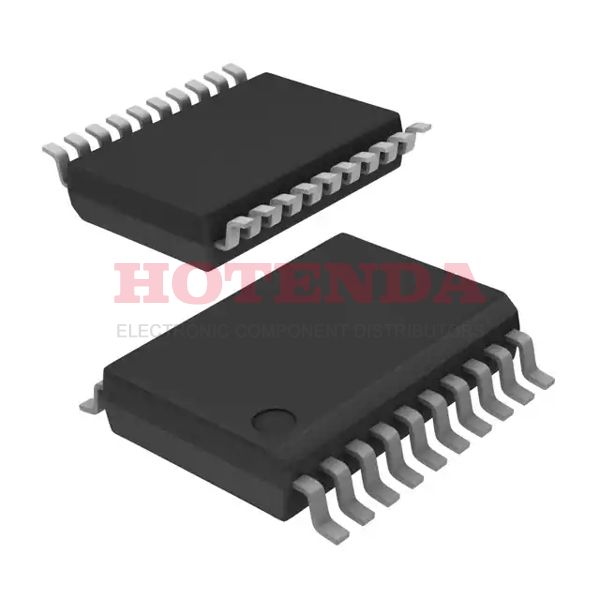

Name: PI5C3245QE
Brand: Diodes Incorporated
SKU: PI5C3245QE
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	20-SSOP (0.154, 3.90mm Width)
Number of Pins	20
Supplier Device Package	20-QSOP
Operating Temperature	-40°C~85°C
Packaging	Tube
Published	2010
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Bus Switch
Resistance	10Ohm
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Voltage - Supply	4.75V~5.25V
Base Part Number	3245
Operating Supply Voltage	5V
Number of Elements	1
Circuit	8 x 1:1
Number of Channels	8
Max Supply Voltage	5.25V
Min Supply Voltage	4.75V
Power Dissipation	500mW
Number of Bits	8
Throw Configuration	SPST
Propagation Delay	250 ps
Quiescent Current	3μA
Turn On Delay Time	6.5 ns
Supply Type	Single
High Level Output Current	-120mA
Low Level Output Current	120mA
Voltage Supply Source	Single Supply
Independent Circuits	1
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PI5C3245QE Product Details

PI5C3245QE Overview

Digital switch is provided in the 20-SSOP (0.154, 3.90mm Width) for the purpose of saving board space.It is packaged according to the Tube method.Digital switch ic adheres to a mounting method of Surface Mount.The analog IC in the multiplexers is identified as Bus Switch.The operating temperature of -40°C~85°C will not be susceptible to external factors.It provides digital controlled switch's superior flexibility for designers to use when it operates with a supply voltage of 4.75V~5.25V.provides digital controlled switch's digital controlled switch'sAs its base part number is 3245, logic switch can also be used to find its related parts.There is a supply type of Single employed as part of this supply.A total of 20 pins are configured on this board.The mounting is in the way of Surface Mount.There are 8 bits signal multiplexer provides.Without the influence of external factors, it consumes 3μA current of multiplexer ic.When a supply voltage of 5V is used, reliable performance of the multiplexers can be achieved.With a resistance of 10Ohm, it operates.This turn signal switch's circuit uses 8 transmission channels.A maximum temperature of 85°C is acceptable for this signal switch.In order to maintain a minimal operating temperature, the temperature of the multiplexer should be set to -40°C.The device is specified to operate at a maximum supply voltage of 5.25V in accordance with the applicable device specification.According to its specifications, the digital swith requires a minimum supply voltage of 4.75V.It contains 1 elements in mux switch configuration.
