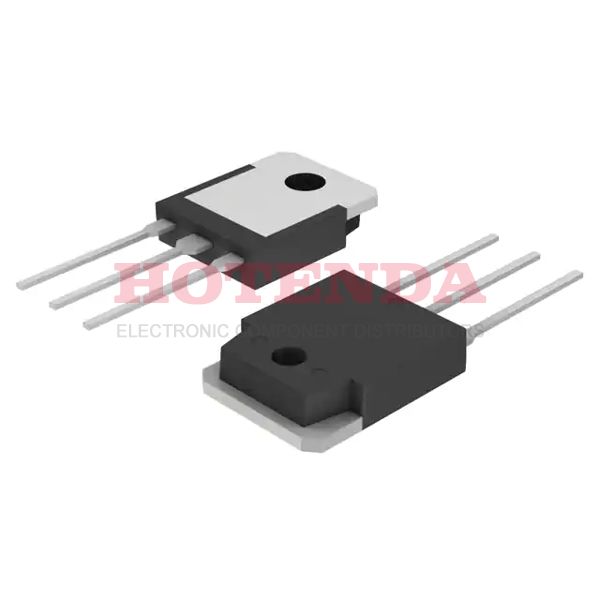

SBL4030PT

Name: SBL4030PT
Brand: Diodes Incorporated
SKU: SBL4030PT
Availability: InStock

new-10%

Manufacturer part number:SBL4030PT

Manufacturer:Diodes Incorporated

Description:SBL4030PT datasheet pdf and Diodes - Rectifiers - Arrays product details from Diodes Incorporated stock available on our website

Case Package:SOT-23

Datasheet:SBL4030PT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	TO-3P-3, SC-65-3
Surface Mount	NO
Diode Element Material	SILICON
Packaging	Tube
Published	2005
JESD-609 Code	e3
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Additional Feature	LOW POWER LOSS, FREE WHEELING DIODE
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	260
Reach Compliance Code	not_compliant
[email protected] Reflow Temperature-Max (s)	40
Base Part Number	SBL4030PT
Pin Count	3
JESD-30 Code	R-PSFM-T3
Qualification Status	Not Qualified
Operating Temperature (Max)	125°C
Number of Elements	2
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	1mA @ 30V
Voltage - Forward (Vf) (Max) @ If	580mV @ 20A
Operating Temperature - Junction	-55°C~125°C
Output Current-Max	40A
Application	EFFICIENCY
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	40A
Number of Phases	1
Rep Pk Reverse Voltage-Max	30V
Non-rep Pk Forward Current-Max	375A
Diode Configuration	1 Pair Common Cathode
RoHS Status	ROHS3 Compliant
